Chicken feed pellet machine for sale
Chicken feed pellet machine is the core equipment of chicken feed plant, the function is to produce 1-12mm chicken feed pellets. If you are looking for the right chicken feed pellet machine for you, please take a look at RICHI chicken feed pellet machine for sale.
RICHI MACHINERY
Introduction of RICHI chicken feed pellet machine
Customizable 1-45T/H chicken feed pellet machine for sale
RICHI SZLH series chicken feed pellet machine is one of the earliest types of animal feed pellet mill introduced by RICHI Machinery. After 30 years of continuous upgrading and optimization, our chicken feed pellet maker has the advantages of good pelleting effect, long service life and low maintenance rate. In addition, RICHI chicken feed pellet maker can produce different types and growth stages of chicken feed pellets.
- Capacity: 1-45T/H
- Produced pellet diameter: 1-12mm
- Chicken feed pellet diameter: generally 1.5-4mm
- Length of chicken feed pellets: generally 1.5-2 times of diameter
- Applicable chicken types: chicks, hens, laying hens, broilers, etc.
- Raw materials: corn, wheat, bran, soybean cake, soybean meal, cotton meal, rapeseed meal, sunflower cake, peanut meal, fish meal, premix and so on.
- Applications: large and medium-sized chicken farms, poultry feed pellet plants, etc.
- Ring die aperture: 1-12mm, can be customized.
- Ring die compression ratio: 1:3.5~1:13 (Ring die compression ratio refers to the ratio of the effective thickness of the ring die hole and the minimum diameter of the ring die hole, which is an index reflecting the extrusion strength of pellet feed. The larger the compression ratio is, the stronger the extruded pellet feed is.)
For your own chicken feed pellet machine
We can provide customers with personalized chicken feed pellet machine to meet the needs of customers for different sizes of chicken feed pellets.
Structure and working principle
- Basic components: variable frequency feeder, single-shaft paddle conditioner, Siemens motor, gear box, granulation chamber.
- Working Principle: The well-mixed powdered chicken feed and premix are fed into the conditioner through the variable frequency feeder. The conditioner is connected to the boiler, and the steam is fed into the conditioner for material curing, gelatinizing and sterilizing. After the conditioner is completed, the material enters into the pelleting chamber through the feeding drum. Under the action of the rollers and ring die, the materials are extruded out from the die holes and cut off by the cutter, and finally made into the required chicken feed pellets.
- Steam temperature: 150-170℃
- Conditioning time: 15-40s
- Conditioning temperature: 75-85℃
- Conditioning moisture: 15-17%
Features of RICHI chicken feed pellet making machine
RICHI pellet machine has multiple utility model patents, and many details are worth knowing, such as blade arrangement, steam valve, ring die opening rate, cutter observation hole, safety pin and so on.
Variable frequency feeder
The feeder uses a variable frequency motor, the changing of motor speed can adjust the feeding speed. So, RICHI chicken feed pellet maker can not be blocked, not idling. The feeder is made of stainless steel. So, it is durable, easy to clean and does not corrode chicken feeds.
Single-axis paddle conditioner
It is made of stainless steel, and the size is relatively large, such as SZLH520: length 3m*diameter 0.42m. The blades are forged and arranged at a certain angle. Not only wear-resistant, but also improve the conditioning effect.
Thermometer
There is a thermometer below the conditioner. The thermometer displays the temperature of the steam as it enters the conditioner. The temperature of chicken feed is controlled at about 80℃. When the temperature is low or high, you can adjust the valve.
Ring die
The ring die opening rate of RICHI chicken feed pellet making machine reaches 100%, which can ensure the capacity and effect of granulation. In addition, the forged clamp fixed ring die is not only strong and durable, but also convenient to disassemble.
Manual feed port
There is a manual feed port on one side of the granulation chamber, it can play a by-pass role. A door handle is attached to control its opening and closing. Materials that cannot be modulated at high temperature can be directly entered into the pelletizing chamber from the manual feed port.
Cutter observation hole
The cutter observation hole is arranged in the pelletizing outer shell. Without disassembly, the distance between the cutter and the ring die can be seen through the observation hole. This is very convenient for adjusting the length of chicken feed pellets.
RICHI MACHINERY
RICHI 1-45T/H chicken feed pellet machine for sale
Nine models of RICHI SZLH Series Chicken feed pellet machine for sale. Of course, we can also customize chicken feed pellet machines to meet the needs of customers.
SZLH250 broiler feed making machine
- Capacity: 1-2T/H
- Main motor power: 22kw
- Feeder power: 1.1kw
- Conditioner power: 1.5kw
- Finished pellet diameter: 1-12mm
SZLH320 hen feed making machine
- Capacity: 3-4T/H
- Main motor power: 37kw
- Feeder power: 1.5kw
- Conditioner power: 2.2kw
- Finished pellet diameter: 1-12mm
SZLH350 chicken feed pellet maker
- Capacity: 5-7 T/H
- Main motor power: 55kw
- Feeder power: 1.5kw
- Conditioner power: 3kw
- Finished pellet diameter: 1-12mm
SZLH420 pellet machine for chicken feed
- Capacity: 8-12T/H
- Main motor power: 110kw
- Feeder power: 1.5kw
- Conditioner power: 7.5kw
- Finished pellet diameter: 1-12mm

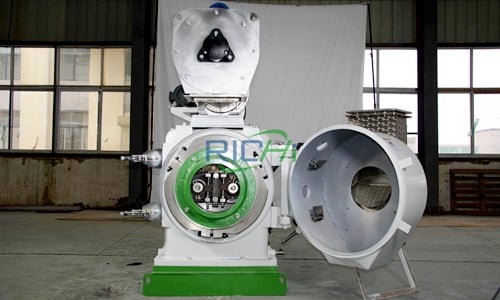

SZLH508 chicken feed pellet machine for sale
- Capacity: 10-18 T/H
- Main motor power: 160kw
- Feeder power: 2.2kw
- Conditioner power: 11kw
- Finished pellet diameter: 1-12mm
SZLH558 broiler chicken feed making machine
- Capacity: 15-25 T/H
- Main motor power: 180/220kw
- Feeder power: 2.2kw
- Conditioner power: 11kw
- Finished pellet diameter: 1-12mm
SZLH678 poultry feed pellet machine for sale
- Capacity: 20-30 T/H
- Main motor power: 220/250kw
- Feeder power: 2.2kw
- Conditioner power: 11kw
- Finished pellet diameter: 1-12mm
SZLH768 poultry feed pellet making machine
- Capacity: 25-40T/H
- Main motor power: 250/280kw
- Feeder power: 2.2kw
- Conditioner power: 11kw
- Finished pellet diameter: 1-12mm
SZLH858 chicken feed making machine for sale
- Capacity: 28-45 T/H
- Main motor power: 315/355kw
- Feeder power: 2.2kw
- Conditioner power: 15kw
- Finished pellet diameter: 1-12mm
Chicken Feed Pellet Machine On Chicken Feed Production Line
The chicken feed pellet machine is used in the pelleting section of the chicken feed production line, to process powdered feed into pellet feed. The production of chicken feed pellets requires the entire chicken feed pellet production line. Besides, the capacity of RICHI chicken feed production line is 1-100T/H, and a high capacity production line requires multiple chicken feed pellet machines in parallel.
Auxiliary Equipment On Chicken Feed Production Line
The main sections of the chicken feed pellet production line include: Receiving of raw materials, pretreatment, crushing, mixing, granulation, cooling, crumbling, screening, packaging.
Grain crushing machine
The raw grains are crushed into powdered feed.
feed mixing equipment
The crushed feed, premix, additives, etc., will be mixed evenly, ready to enter the granulation section.
Feed pellet cooling machine
The temperature of chicken feed pellets directly out of the pellet machine is 70-80°C, the pellets are easy to be damaged and not easy to pack, and the chicken feed pellets are cooled to room temperature through the feed pellet cooling machine.
Pellet Crumbler
The pellet crumbler is installed under the cooling machine and breaks the chicken feed pellets to obtain smaller chicken feed pellets. The pellet crumbler can increase the capacity of small size chicken feed pellets.
Rotary screener
Used to screen powdered feed and large size feed pellets to obtain the final chicken feed pellets.
Automatic packaging machine
Automatic packaging machine can automatically weigh and package final chicken feed pellets, saving labor.
Cases Of RICHI Chicken Feed Pellet Machine
10T/H Animal mash and pellet feed line
- Country: Mauritania
- project total power: 330KW
- Customer’s raw materials: straw, husk , corn , soybean meal, oil, premix, etc.
- Pellet diameter: 0.8-12.0mm
- Main equipment: grain hammer mill, feed mixer, SZLH chicken feed pellet maker, pellet cooler , pellet crumbler, rotary screener, automatic packing machine
1-2T/H chicken feed production line
- Country: Tanzania
- Project start date: July 11, 2019
- project total power: 47.95 KW
- Customer’s raw materials: corn , wheat, soybean meal, etc.
- Pellet diameter: 1.5 mm, 4 mm
- Main equipment: grain hammer mill, feed mixer, SZLH chicken feed pellet mill, pellet cooling belt, screw conveyor
10T/H chicken feed and 5-6T/H cattle feed pellet production line
- Project start time: March 30th, 2018
- Country: Saudi Arabia
- project total power: 554kw
- Customer’s raw materials: alfalfa, corn, soybean meal, etc.
- Pellet diameter: 1-12mm
- Main equipment: feed hammer mill with 110kw, feed mixer, animal feed pellet mill with 160kw, pellet cooler, crumbler, automatic packing machine.
1-2T/H chicken feed production line in Rwanda
- Country: Rwanda
- Project start date: May 8, 2019
- Capacity: 1-2T/H
- Customer’s main raw materials: corn, soybean meal
- Pellet diameter: 2mm, 4mm
- Customization: yes
- Main equipment: SZLH250 chicken feed pellet making machine, feed hammer mill with 11kw, feed mixer with 3kw, pellet cooling machine
- project total power: 50.73kw
- Labour required for project operation: 3-5 persons
- Drawings provided by our company: flow chart, pit chart, steel structure diagram, chicken feed production line layout chart, etc.
- Warranty period: except for wearing parts, the warranty period is 12 months, and free technical support is provided permanently.
- Project Installation: This is a simple chicken feed production line, the Rwandan customer chose to install it by themselves. However, the installation process still encountered some problems, such as motor connection, machine installation direction, steel frame welding parts, cyclone installation position, vibrating screen installation direction and so on. In this process, our after-sales personnel and technicians solved these problems for the customer in time through remote guidance.
- Customer visit: The Rwandan customer attaches great importance to the chicken feed production line and is very careful in the choice of equipment. They came to China and visited multiple feed pellet machine factories. In the end, they were very satisfied with RICHI’s advanced manufacturing process, high-quality machine materials selection, customized solutions and perfect services, and launched this cooperation with us.
- Customer Feedback: Hello, I am glad to tell you that the current chicken feed production line is running well and the capacity can reach the expectations. In addition, the chicken feed molding rate can reach 99%. thank you.
How to buy RICHI chicken feed pellet making machine?
Determine your purchase intentions
Before buying a chicken feed pellet machine, you need to think in advance about the capacity of chicken feed pellet machine, your budget, the size of the plant, etc.
Send an inquiry
Tell us your purchase intention, there will be a special sales staff for you to propose a suitable chicken feed pellet production solution, choose the right chicken feed pellet machine.
Reach cooperation
When you understand the advantages of RICHI feed machinery and equipment, and experience our customized solutions for you. We believe that you will choose to cooperate with us.
Turnkey service
RICHI Machinery has always been a “
turnkey service
” for customers. We can not only guarantee timely delivery for customers, but also provide installation and commissioning, worker training and after-sales service.
Frequently Ask Question
Frequently Ask Question
Click Here to buy now.
What is the Chicken feed pellet machine price?
The price of chicken feed pellet machine is changed according to its model. Take RICHI chicken feed pellet machine as an example, the price range is between $10,000 and $100,000. However, different models have different prices. If you want to know the specific prices, you can send inquiries to consult us.
How to produce different size feed pellets with the same chicken feed pellet machine?
The size of chicken feed pellet is determined by the diameter of the ring die and the distance between the cutter and the ring die. We usually equip customers with ring dies of different apertures and teach customers how to adjust the distance between the cutter and the ring die. In this way, customers can use the same chicken feed pellet machine to produce feed pellets of different sizes. RICHI have 1-12mm chicken feed pellet machines for sale.
