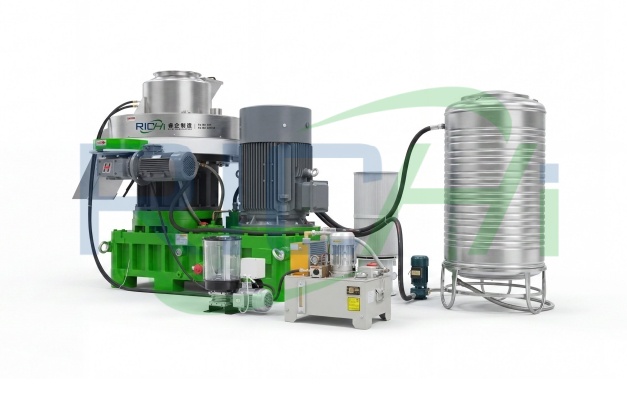

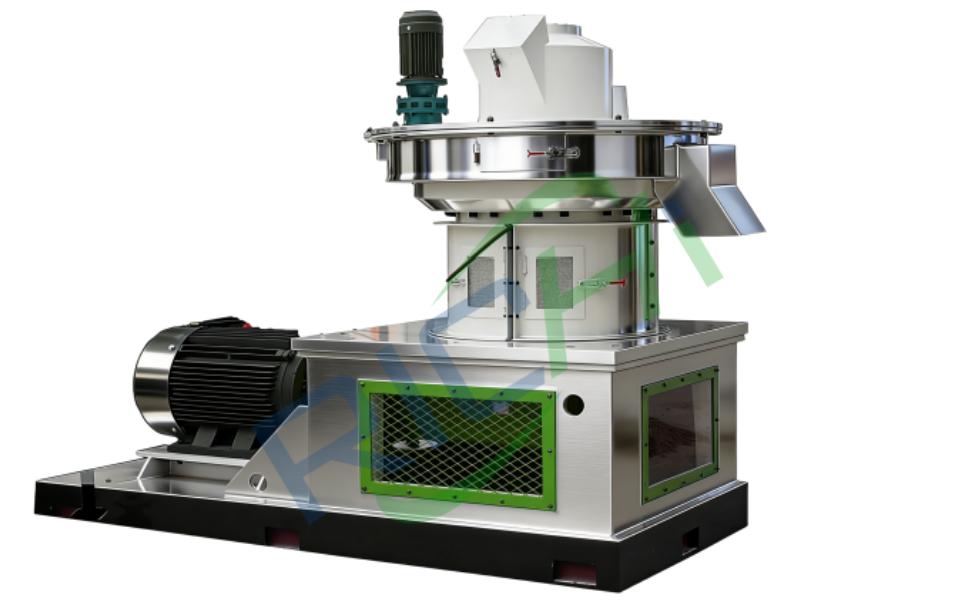

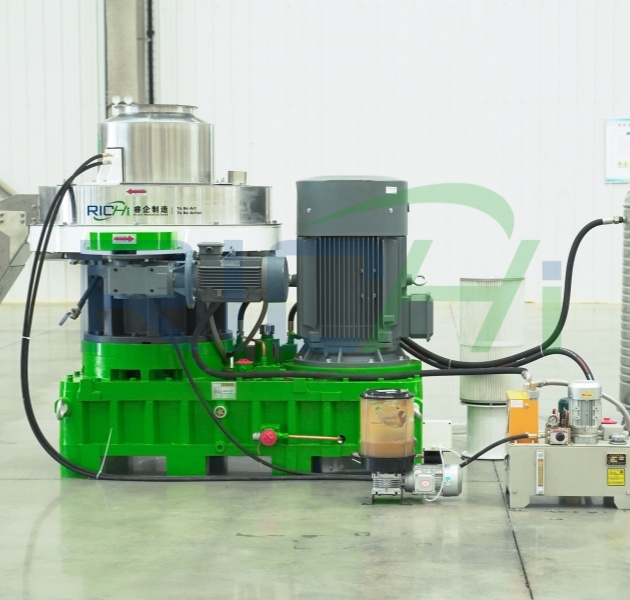

VERTICAL RING DIE PELLET MACHINE
This multi-functional vertical ring die pellet machine can be used to produce biomass pellets, organic fertilizer pellets, animal bedding such as cat litter, and various organic waste resource-based pellet products, compatible with over 100 kinds of raw materials. Customized production line designs are available, and complete production line equipment can be provided.
WHY CHOOSE A VERTICAL RING DIE STRUCTURE?
The Vertical Ring Die Pellet Machine features a unique vertical layout design, which enhances its ability to process high-fiber, coarse-fiber, low-density, and difficult-to-form raw materials. The vertical structure allows materials to be fed vertically, ensuring uniform force on the pressure rollers and high utilization of the ring die, resulting in less wear on the die and stronger continuous production capabilities. The pellets produced have high density, smooth surface, and higher quality.
Working Principle Of Vertical Ding Die Pellet Mill
In simple terms, raw materials enter the pelleting chamber of the vertical ring die pellet machine through the feeding system. Under gravity, the material is evenly distributed on the surface of the ring die. Driven by a motor, the pressure rollers rotate at high speed, forcefully squeezing the material into the die holes. Under high temperature and pressure, the material is compressed into cylindrical pellets, which are then cut by a cutter and discharged from the outlet.
- Capacity range: 1-10T/H
- Vertical Pellet Machine Price: 5000-80000+ USD
- Finished Pellet Characteristics: High density, high calorific value, stable combustion, low ash content, can replace coal, sufficiently environmentally friendly and clean, easy to store and transport.
WIDELY USED IN VARIOUS PELLET PRODUCTION FIELDS
Because the RICHI vertical ring die pellet machine has significant advantages over other types of pelletizing equipment in terms of raw material adaptability, equipment stability, and continuous production capacity, it demonstrates high efficiency and excellent performance in various pellet production fields.

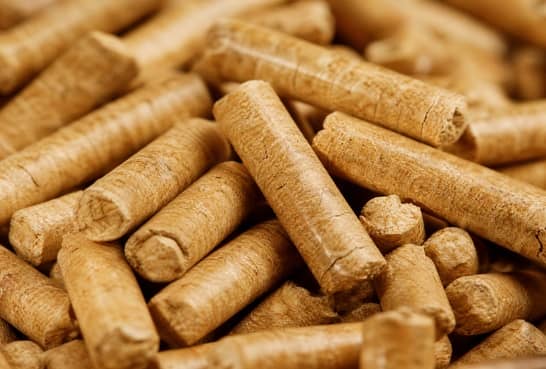

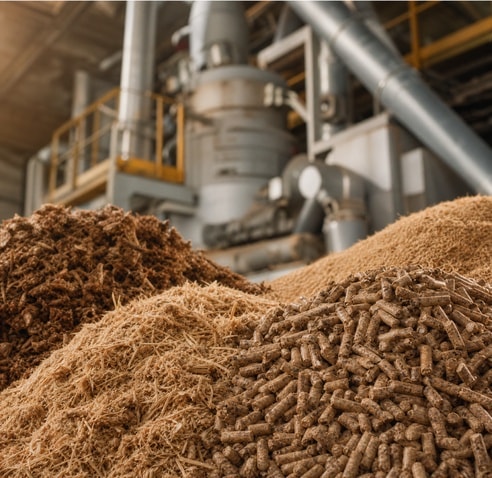

Biomass Material Processing
Our vertical pellet mill can process various biomass raw materials, such as agricultural by-products like wood, straw, rice husks, fruit shells, bagasse, cassava residue, mushroom waste, palm fiber, and waste cardboard. It can stably process high-fiber, high-hardness, and low-density biomass raw materials, processing them into dense pellets for incineration and other applications.
Organic Fertilizer Production

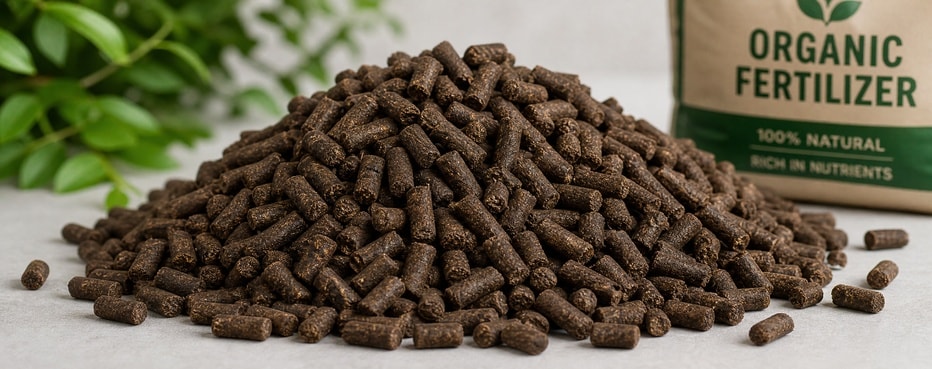

The RICHI vertical ring die pellet machine can granulate various fermented organic materials to produce high-quality organic fertilizer pellets, bio-organic fertilizer pellets, and soil conditioner pellets. Examples include chicken manure, cow manure, and other animal excrement; fermented bedding materials, mushroom residue, and other organic waste; landscaping waste; compost materials, and organic fertilizer premixes.
Animal Bedding Production

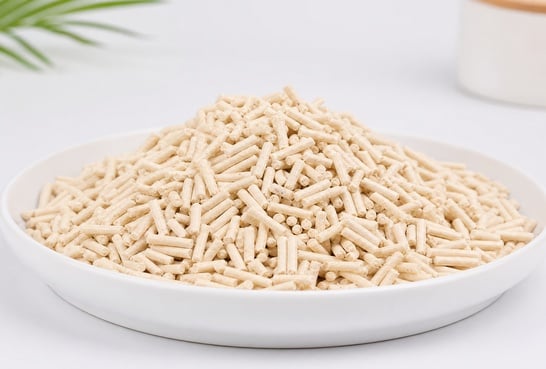

The equipment can process natural plant fiber raw materials with good moisture absorption and deodorizing properties into animal bedding pellets. For example, raw materials such as pine sawdust, cedar sawdust, rice husks, pulp fiber, and straw fiber can be used to make cat litter pellets, horse farm bedding, poultry bedding, and pet bedding. The finished product is characterized by strong water absorption, easy cleaning, and environmental biodegradability.
If you are interested in improving production efficiency, reducing operating costs, and obtaining a higher return on investment, please contact us. We are ready to provide you with satisfactory solutions.
ADVANTAGES TECHNOLOGY ENSURES STABLE AND EFFICIENT PERFORMANCE
Thanks to the mature design of RICHI’s vertical ring die pellet machine in pelletizing technology, along with the combination of highly wear-resistant materials and high-quality components, our vertical ring die pellet mill boasts excellent performance.
Under the same power conditions, the capacity of a ring die pellet mill is typically much higher than that of a flat die pellet mill, with actual capacity increases reaching 100%-200%, energy consumption per ton reduced by 15%-30%, ring die life increased by 50%-200%, replacement frequency of wear parts reduced by 30%-50%, and pellet formation rate reaching over 98%.
Vertical Gravity Feeding Design
Material enters the pressing area evenly under its own weight, avoiding bridging and clogging problems, improving feeding stability and pelleting efficiency.
High-Strength Ring Die Pressing System
Utilizing a ring die and pressure rollers made of highly wear-resistant materials, high-pressure extrusion achieves rapid forming, resulting in high pellet density and stable calorific value.
Intelligent Automatic Lubrication System
The equipment is equipped with a centralized automatic lubrication system, providing timed and metered lubrication to key components, reducing manual maintenance and extending the service life of bearings and transmission components.
High-Efficiency Gear Transmission Structure
Employing a high-torque precision gear transmission, it offers higher efficiency, lower power loss, and more stable and reliable operation compared to traditional belt drives.
Wear-resistant core component design
Key components are manufactured using special heat treatment processes and highly wear-resistant materials, suitable for high-fiber, high-hardness biomass raw materials.
24-hour continuous production
The equipment has strong continuous production capabilities and can maintain long-term continuous and stable operation, meeting industrial-grade production requirements.
VERTICAL RING DIE PELLET MACHINE MODEL AND PARAMETERS
RICHI offers a variety of specifications of vertical ring die pellet mills, and can customize equipment and production lines according to raw material characteristics, capacity requirements and project scale to meet the needs of continuous production from small-scale industrial vertical pellet machines.
| Model | V-MZLH560A | V-MZLH560B | V-MZLH850A | V-MZLH850B | V-MZLH928 | V-MZLH1180 |
| Power(KW) | 90 | 160 | 220 | 280 | 355 | 630 |
| Finished Particle Size(mm） | 2-12 | 2-12 | 2-12 | 2-12 | 2-12 | 2-12 |
| Mold Type | Ring Die | Ring Die | Ring Die | Ring Die | Ring Die | Ring Die |
| Production Capacity(T/H) | 1-1.2T/H | 1.5-2T/H | 2.5-3T/H | 3-4T/H | 4-5T/H | 7-10T/H |
GRANULATION SOLUTIONS COMPATIBLE WITH MULTIPLE RAW MATERIALS
The equipment is compatible with pellet production in multiple fields such as biomass material processing, organic fertilizer production, and animal bedding production. It can process a wide variety of raw materials and has excellent pressing capabilities for various types of raw materials.
Hay
manure
bamboo
wood chips
shells
rice husks
palm fiber
straw
RICHI RING DIE PELLETIZER GLOBAL CASES
RICHI Manufacture has over 30 years of experience in the pelletizing equipment manufacturing industry, with equipment deployed in more than 140 countries and regions worldwide. Its strength has earned the trust and positive feedback of its customers. Below are a few examples of ring die pelletizer projects to help you make informed investment decisions.
Germany
1-1.2T/H Wood Pellet Project
Produces high-quality biomass fuel pellets from wood processing waste.
Philippines
1.5-2T/H Bagasse Pellet Project
Realizing the resource utilization of sugar industry by-products and enhancing their economic value.
Malaysia
2.5-3T/H Palm Biomass Pellet Project
Utilizing palm fiber and palm shells to produce industrial boiler fuel pellets.
Uzbekistan
5T/H Straw Pellet Project
Utilizing abundant crop straw resources to produce biomass fuel.
Australia
8T/H Animal Bedding Pellet Project
Using wood chips and shavings to produce bedding pellets specifically for horse farms and ranches.
Saudi Arabia
8T/H Organic Fertilizer Granule Project
Converting livestock waste into high-efficiency organic fertilizer products.
ONE-STOP GRANULATION PRODUCTION LINE
Our vertical ring die pellet production line features a modular design. The entire production line can be customized based on raw material type, moisture content, production capacity requirements, and finished product standards. The line covers multiple stages, including raw material processing, pelleting, post-granulation processing, and packaging and storage, ensuring high-quality final pellets.
1
Raw Material Cleaning:
Before entering the production line, biomass raw materials undergo a cleaning process to remove impurities such as stones, metal, ropes, and plastics. This prevents equipment wear and blockages, improves production safety, and guarantees the quality of the finished pellets and the long-term stable operation of the equipment.
2
Composting and Fermentation:
When using animal manure to make organic fertilizer pellets, the manure needs to be fermented and fermented. During composting, most bacteria and harmful microorganisms are eliminated, ensuring the safety of the fertilizer.
3
Crushing System:
For larger raw materials, crushing equipment is used to process them into a suitable pelleting state. Crushed materials are more uniform, facilitating subsequent moisture control and extrusion pelleting, thereby improving pellet formation rate and production efficiency.
4
Drying System:
Excessive moisture content in raw materials severely affects pellet formation. Therefore, a drying system is essential to strictly control the moisture content of the raw materials. Depending on the raw material characteristics and production capacity requirements, both rotary drum dryers and mesh belt dryers are available.
5
Batching and Mixing:
Various additives, microbial agents, and other substances are added according to product requirements and then uniformly mixed.
6
Pelletizing System:
Pelletizing is the core of the entire production line. After a series of processing steps, the raw materials are fed into the vertical wood pellet machine, where they are extruded under high temperature and pressure by pressure rollers and ring dies to form high-density fuel pellets.
7
Cooling System:
Freshly pressed pellets are very hot and not yet hard enough, requiring timely cooling. Cooling further improves the hardness and strength of the pellets and dries them, preventing breakage and mold growth during storage and transportation.
8
Screening System:
The cooled pellets enter the screening system to separate finished pellets from unqualified fragments. Qualified pellets proceed to the packaging stage, while the screened powder can be returned to the pelletizing process for reuse, thereby improving raw material utilization and product qualification rate. Our pellet forming rate is over 98%.
9
Packaging System:
The screened finished pellets are weighed and packaged by an automatic packaging system. Small bag packaging, ton bag packaging, or bulk packaging can be selected according to market demand. Packaging the granules makes them easier to store, transport, and sell, increasing product added value and market competitiveness.
COMPLETE SUPPORTING EQUIPMENT SYSTEM FOR THE ENTIRE PROCESS
As a vertical pellet machine manufacturer, we are also China’s largest “full-line” equipment manufacturer. We independently produce all the equipment needed for each stage of the production line, and have in-depth knowledge of production line design and equipment, enabling us to design more efficient production lines.
CHOOSE RICHI, CHOOSE A MORE RELIABLE PELLETIZING EQUIPMENT MANUFACTURER
We possess a comprehensive team system covering R&D, manufacturing, installation and commissioning, and after-sales service. Our goal is to provide global clients with professional and efficient one-stop solutions, ensuring the smooth and stable operation of every project.
Technological Advantages
We have an experienced professional R&D and engineering team with over 30 years of industry experience. We continuously optimize the structure and processes of our core equipment, maintaining a leading position in the industry and providing global clients with efficient, stable, and intelligent feed processing solutions.
Quality Advantages
We strictly adhere to standardized production and quality control processes. We implement extremely stringent quality control on our equipment. Core components are manufactured using the best materials and the most advanced processing technologies to ensure the operational quality and safety of the equipment.
Price Advantages
We have a manufacturing plant covering over 60,000 square meters. With a mature manufacturing system, large-scale production capacity, and a complete supply chain, we can provide clients with more competitive prices and higher cost-effectiveness production line solutions while ensuring equipment quality.
Service Advantages
We have established a comprehensive global service system covering pre-sales solution design, equipment installation and commissioning, operation training, and after-sales technical support. For parts replacement, we also provide timely solutions worldwide to ensure you receive end-to-end, one-stop service support.
MORE OPTIONS FOR PELLETING EQUIPMENT
As a manufacturer of vertical pellet machines, we have also developed other types of ring die pellet machines, which are more targeted in raw material processing and have other features. If you are interested, you can click the corresponding link to view the relevant page.
FREQUENTLY ASKED QUESTIONS
After reading this article, do you still have any questions? We have prepared answers to some frequently asked questions for you. You can also contact us directly, and we will arrange a professional technical consultant to provide you with one-on-one free answers.
What raw materials can a vertical ring die pellet machine process?
+
Vertical ring die pellet machines are particularly suitable for pelleting high-fiber, low-density materials and can be widely used in biomass fuel, organic fertilizer, and animal bedding. Common raw materials include sawdust, shavings, wood chips, straw, rice husks, peanut shells, palm shells, coconut shells, palm fiber, bagasse, chicken manure, cow manure, sheep manure, and other fermented organic fertilizers, cat litter, pet bedding materials, garden waste, and mushroom waste.
What is the difference between a vertical ring die pellet machine and a horizontal ring die pellet machine?
+
The biggest difference lies in the feeding method. Vertical ring die pellet machines use gravity feeding, where the material falls directly into the pelleting chamber, reducing the likelihood of uneven feeding, blockages, clumping, and bridging. This makes them particularly suitable for loose, lightweight raw materials such as sawdust, straw, and rice husks. Horizontal ring die pellet machines, on the other hand, typically require a forced feeding system. Compared to other types, vertical ring die structures typically offer advantages such as smoother feeding, greater adaptability to raw materials, more uniform pressure on the pressure rollers, and better operational stability.
Why control the moisture content of raw materials in pelleting?
+
The moisture content of raw materials is a crucial factor affecting pellet quality and yield. Excessive moisture can lead to loose pellets, die clogging, and reduced output; conversely, insufficient moisture makes pellet formation difficult, increases energy consumption, and accelerates die wear. Generally, a moisture content of around 15% is optimal for pelleting raw materials, but the specific value depends on the type of raw material, pellet type, and intended use.
Is die clogging common in pellet mills?
+
Under normal production conditions, pellet mills do not frequently clog. Clogging is usually caused by substandard raw material moisture content, substandard particle size, prolonged downtime without die cleaning, improper ring die compression ratio selection, or impurities in the raw materials. Regularly maintaining the ring die and properly controlling raw material parameters can significantly reduce the risk of clogging.
