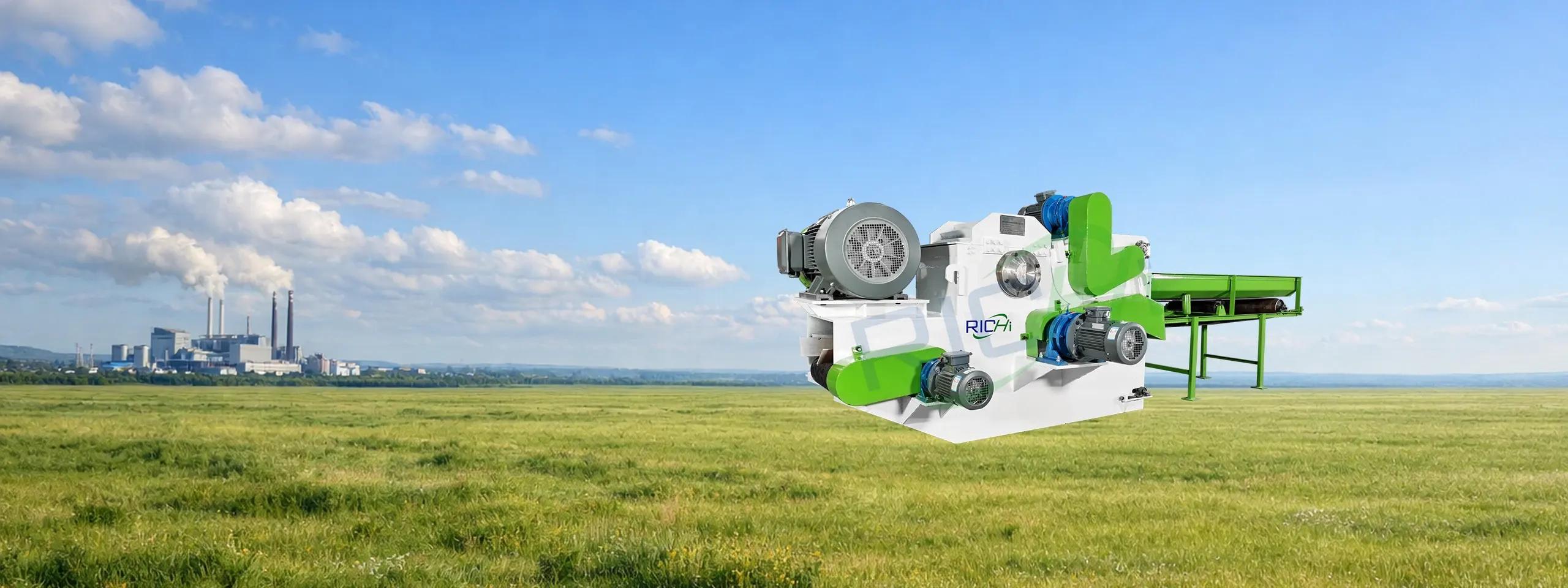

COMMERCIAL WOOD CHIPPER
We offer commercial wood chipper specifically designed for processing raw materials such as logs, planks, waste furniture, branches, strips, and blocks. They can efficiently process various large-volume raw materials into 2-4cm thin slices and wood chips.
Factory direct sales, preferential prices, and high cost performance.
TYPES AND FEATURES OF COMMERCIAL WOOD CHIPPERS
Commercial wood chippers that can efficiently process large timber raw materials generally fall into two categories: drum chippers and template crushers. The following is an introduction to RICHI commercial wood chippers.

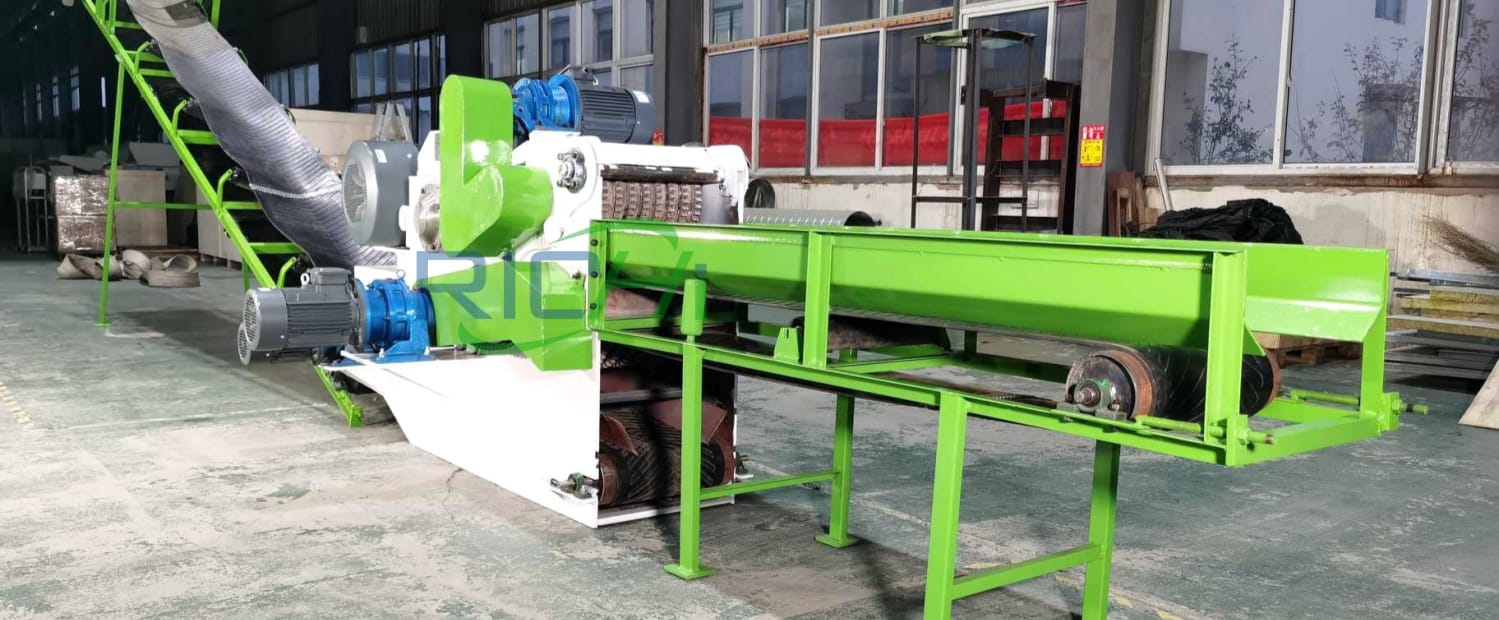

Drum Wood Chipper
Drum chippers can process logs, branches, and wood strips into thin chips of 2-4 cm, offering advantages such as high efficiency, high automation, uniform chipping, and strong adaptability. The RICHI drum chipper series offers six models to choose from, widely applicable in wood processing, pulp production, biomass energy, and other fields for processing wood raw materials.
Infeed Size: 500x230mm – 850x600mm
Feed Motor Power: (4+3) KW – (7.5+7.5) KW
Main Motor Power: 75-200 KW
Hydraulic Pump Power: 0.75-3 KW
Discharge Conveyor Power: 1.5-2.2 KW
Number of Flying Knives: 2-14
Number of Fixed Knives: 1-3

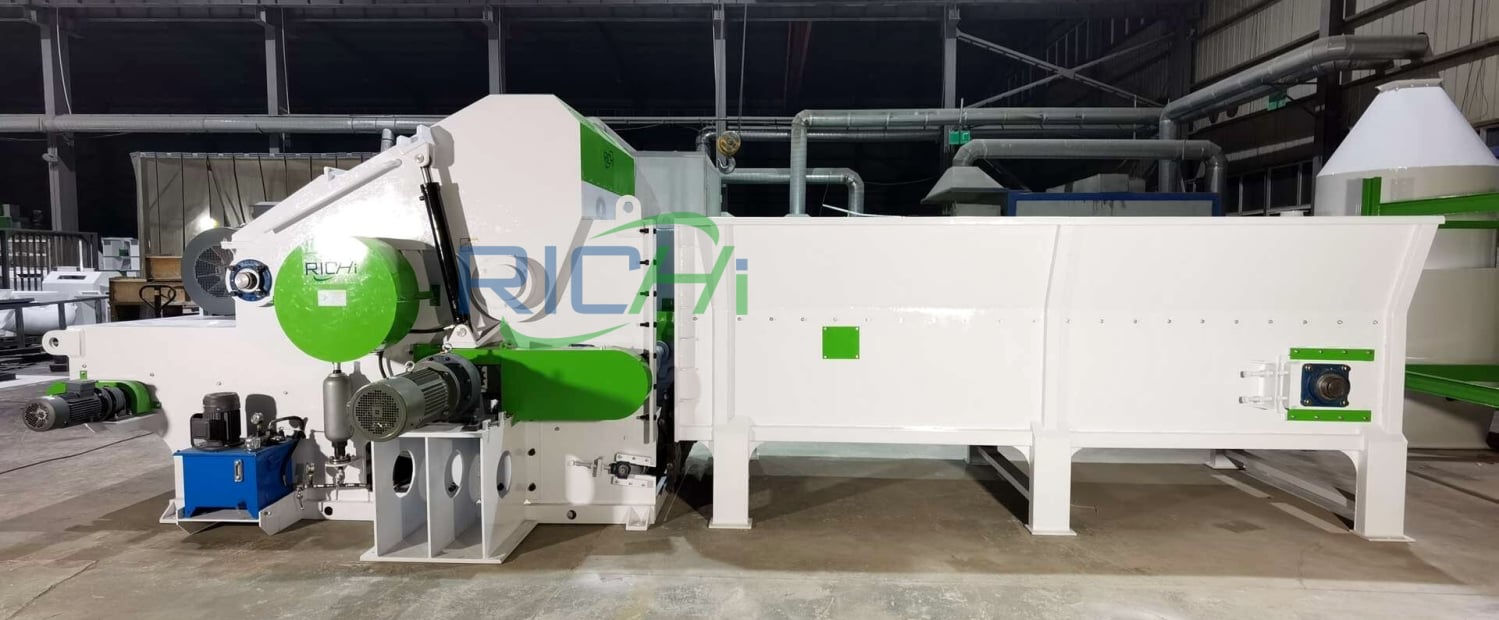

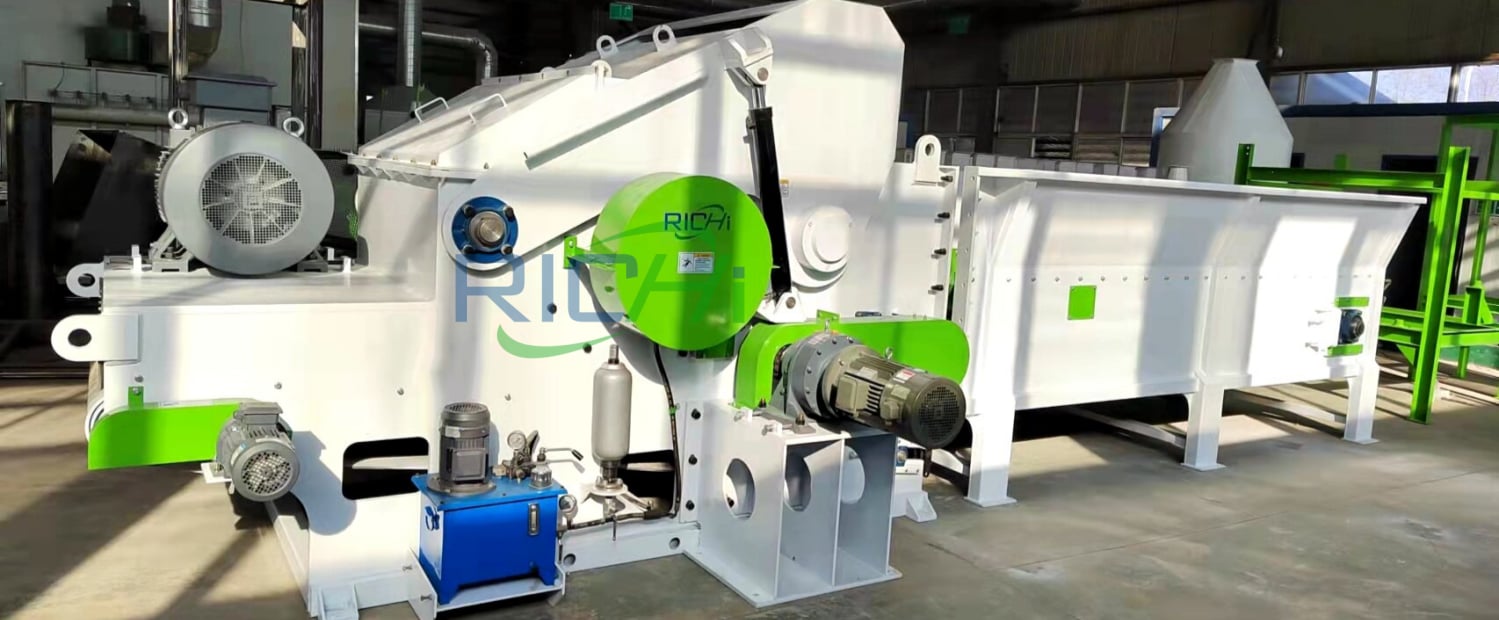

Wood Pallet Chipper
Template crushers can crush wood waste such as nail-bearing wooden brackets, planks, and discarded furniture, offering advantages such as high crushing efficiency, good results, and stable operation. RICHI template crushers are available in seven models and can be widely used in wood processing, waste furniture treatment, biomass energy, and other fields.
Infeed Size: 1000*300mm – 1500*450mm
Main Motor Power: 75 KW – 220 KW
Feed Power: (4*2) KW – (11+7.5) KW
Hydraulic Pump Power: 1.1-2.2 KW
Discharge Conveyor Power: 1.5 KW
Number of Hammers: 20-32
Features Of Drum Wood Chipper
The drum chipper uses five sets of motors working together. These five motors control two sets of raw material gripping rollers, the external belt conveyor, the chipping rotor, the internal belt conveyor, and the hydraulic pump, ensuring efficient and stable operation of the equipment. In addition, it has the following advantages.
● The machine body is welded from high-strength steel plates, and the equipment shell has sufficient strength
● Specially customized bolts and pressure fastening structures ensure no blade displacement and safe equipment operation
● Both the throwing knife and the fixed knife are made of 6GrW2Si material and have undergone a quenching process, resulting in good blade hardness and wear resistance
● The equipment rotor undergoes dynamic balancing testing to ensure the stability and service life of the equipment during high-speed operation

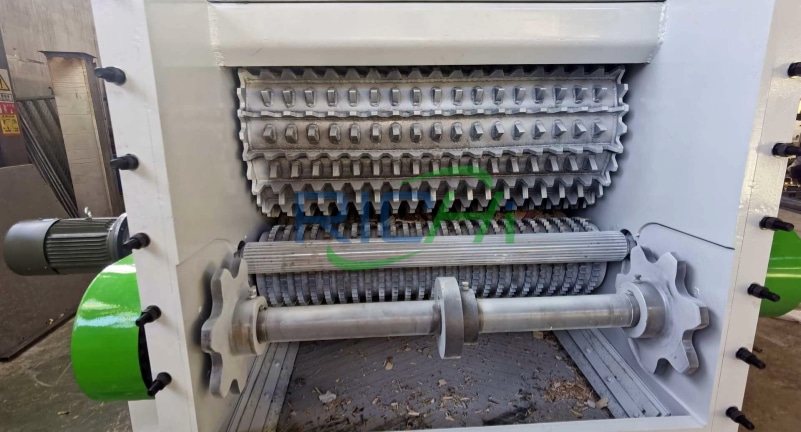

● Equipped with a hydraulically assisted feeding system, it forces material crushing and prevents material slippage and backflow
● The equipment has a compact and reasonable structure, is easy to operate, has high output, is safe and reliable, and has low maintenance costs
Features Of Wood Pallet Chipper

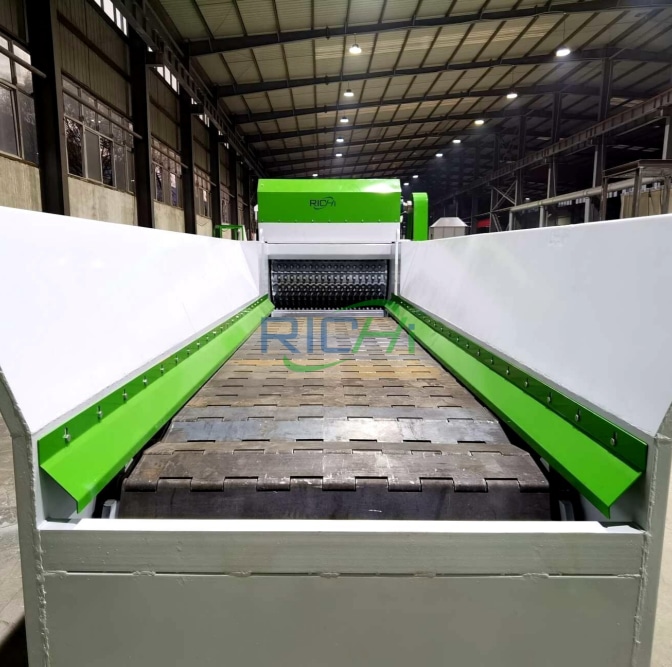

The template crusher has a flatter and wider feed opening, allowing it to feed larger and wider materials, and can also handle materials with nails, thus offering a wider range of material processing capabilities. In addition, it has the following advantages.

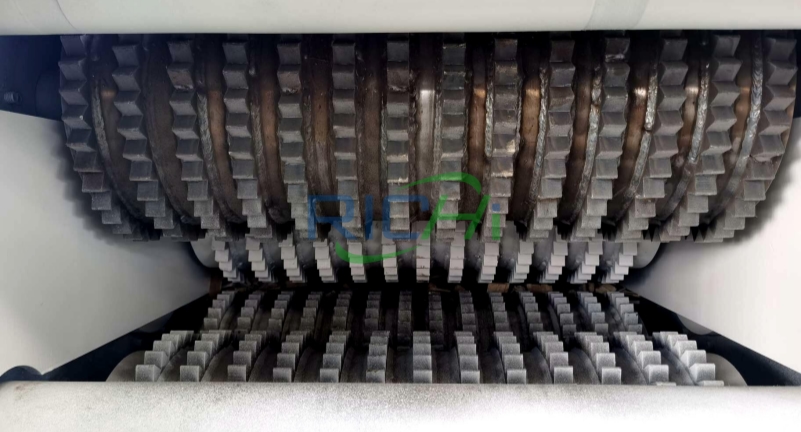

● The hammerhead is made of high-strength alloy steel and undergoes quenching treatment, making it resistant to damage from nails and other metal parts in the raw materials
● All hammers are detachably fixed, facilitating future equipment maintenance and parts replacement
● The equipment features a heavy-duty, thickened casing and carbon dioxide shielded welding, resulting in a longer service life
● Sealed bearings with dustproof and waterproof design ensure stable operation and low maintenance costs
● The equipment is equipped with an automatic overload protection device
COMMERCIAL WOOD CHIPPER VIDEOS
We have prepared three videos to showcase our commercial timber slicer. Through these videos, you can gain a more intuitive and clear understanding of the actual operating results and stable performance of the commercial timber slicer, hoping to help you make the best investment decision.
COMMERCIAL WOOD CHIPPER PROJECT SHOWCASE
Since its establishment in 1995, RICHI Machinery has over 30 years of experience in equipment manufacturing. Our equipment is used in more than 140 countries and regions around the world, and we have successfully completed more than 2,000 projects, earning countless praises from customers for the effectiveness of our equipment. Here are a few project case studies for your reference.

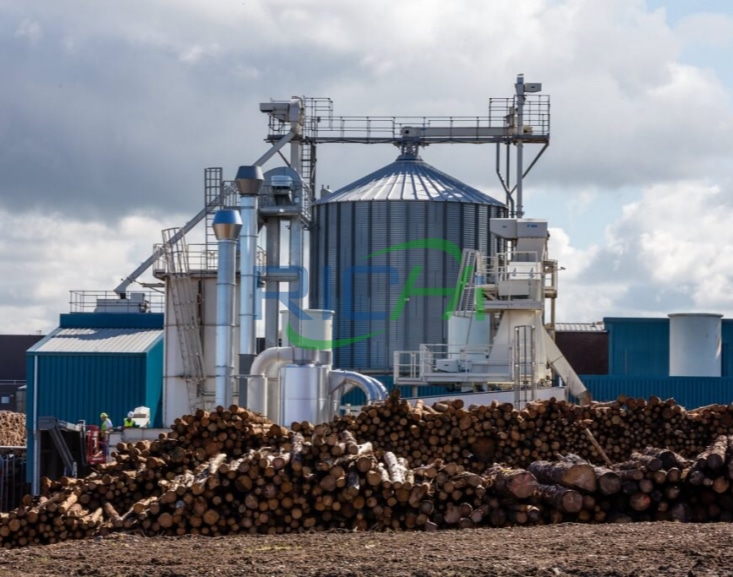

Vietnam Drum Wood Chipper Project
This project was established at a medium-sized timber processing plant in Vietnam, specializing in the processing of logs, branches, and lumber scraps.
The existing wood chipper no longer met the plant’s current capacity requirements and frequently malfunctioned, resulting in unsatisfactory chipping quality, uneven output, excessive dust, and high manual feeding intensity and efficiency. Significant issues with both capacity and quality were identified. After extensive research and comparison, the client chose our wood chipping equipment.
Our drum chipper features forced feeding, wear-resistant blade rollers, and a hydraulic system, making it well-suited for irregular raw materials and continuous high-load operation.
The client reported that after using the RICH machinery drum chipper, capacity increased to 6-8 tons per hour. The equipment operates stably and continuously, producing uniform and qualified wood chips with a dust rate of less than 5%. In the six months of continuous use, no unexpected malfunctions have occurred. Maintenance is simple and cost-effective, resulting in high satisfaction with the project.

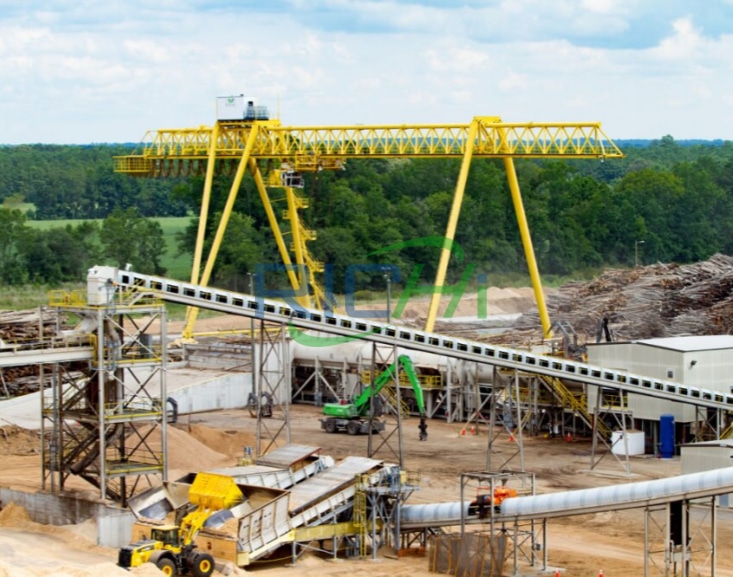

Australia Wood Pallet Chipper Projects
This project was established by a large construction waste recycling company in New South Wales, Australia, serving infrastructure projects in Sydney and Melbourne. The region has a mature market for construction demolition and formwork recycling, with large quantities of waste formwork, timber, pallets, and nailed timber requiring environmentally friendly and resource-based processing. It is estimated that the company processes over 20,000 tons of waste timber annually.
The client’s waste materials contained metal materials such as nails and wires. Ordinary crushing equipment was prone to jamming, the cutter head wore out rapidly, and the old equipment produced uneven particle sizes, making it unusable in many applications. Manual nail removal was costly, inefficient, and posed safety risks, necessitating the replacement of the old equipment.
They then approached us. Our formwork crusher perfectly met their needs, and a project plan was quickly finalized after communication. The project has been successfully in operation for nearly three months. The client has reported no malfunctions, and labor and equipment maintenance costs have been effectively controlled. They are very satisfied and intend to purchase a drum chipper.
OTHER WOOD PROCESSING EQUIPMENT
In addition to the two types of commercial wood chippers mentioned above, we also sell other types of wood processing equipment, including more feature-rich teardrop shredders, wood chippers with finer shredding effects, and debarkers and splitters for log processing. These products are comprehensive in function and suitable for a wide range of applications.
WOOD CHIP MACHINE
Wood chippers can shred small pieces of wood, as well as small quantities of log chips, branches, and other materials into wood chips. The finished product size after shredding can range from 0.5mm to 30mm.
PEELING MACHINE
Designed specifically for removing bark from logs, this pretreatment step is adjustable to accommodate different log diameters, thereby improving wood quality and processing efficiency.
WOOD SPLITTER
The hydraulic system provides powerful wood-splitting force, suitable for combs, thick branches and logs, and features stable performance, high safety and easy operation.
WOOD CHIP HAMMER MILL
It can crush materials with a size of 5cm or less into powder. By changing the sieve, the size of the final crushed product can be controlled within the range of 0.5mm-20mm.
Customized Processing
We have the capability for customized processing and can solve your wood processing problems according to your actual needs. Whether you need to slice or shred the raw materials, we can provide the corresponding solutions.
FAQ
FREQUENTLY ASKED QUESTIONS
If you want to maximize your investment return with our equipment, please feel free to contact us anytime. We will provide the most suitable solution for your needs.
＋
What is the difference between the Drum Chipper and the Template Crusher?
The main difference between the two lies in the state of the raw materials they process. Drum chippers are mainly used to process logs, which can efficiently crush them into wood chips; template crushers are mainly used to process wider and thinner wood, such as door panels and planks, and can also have a better processing effect on wood raw materials with nails and other metal materials.
＋
What are the core advantages of your wood chipper?
In the main text, we explained some of the core features of our different equipment. In general, our commercial wood chippers have core advantages such as high efficiency, low energy consumption, high durability, simple operation, low noise, and wide applicability. In terms of service, we have a professional pre-sales and after-sales team to establish a dedicated group chat with you, and will update you on project progress in a timely manner. Our professional technical team will respond promptly to solve any technical and maintenance problems you encounter. You can rest assured about our equipment and our services.
＋
Can the chipping equipment be used in conjunction with other equipment?
Of course, our wood chippers can be used in conjunction with other equipment. After breaking large pieces of wood into smaller fragments, the chippers can be used for further processing, such as further processing into fuel pellets. If you have further processing needs, we can also provide customized solutions to help you produce more efficiently.
