Bamboo Pellet Machine
The bamboo pellet machine is a professional biomass equipment that can press bamboo powder and bamboo chips into high-density fuel pellets. It has high processing efficiency, durable pellets and a wide range of applications.
What is Bamboo Pellet Machine？
The RICHI bamboo pellet machine is the core equipment in a bamboo pellet production line, specifically designed for pelletizing raw materials such as bamboo flour, bamboo chips, and bamboo flakes. This machine combines an advanced variable frequency feeding system with efficient conditioning technology to ensure a smooth and stable pelletizing process and boasts strong adaptability to raw materials.
With a flexible output range of 0.2 to 4.0 tons/hour, the machine is suitable for both small-scale projects and biomass production lines of all sizes. It offers stable operation, a high degree of automation, and easy maintenance, enabling the sustainable and efficient production of high-density, durable, and clean biomass fuel pellets.
Not only does the bamboo pellet mill feature a compact structure, high-quality materials, and scientific manufacturing processes, RICHI also offers differentiated configurations and customized services based on the customer’s raw material characteristics, pellet diameter requirements, and production capacity, truly enabling a single machine to serve multiple purposes and meet the diverse fuel market needs.
Production capacity
0.2-4.0T/H
particle Size
4-12mm
Application of Bamboo Pellet Machine
Bamboo pellet machines are widely used in various industries and production fields due to their high efficiency, environmental friendliness, and versatility. By fully utilizing bamboo resources, they not only increase the added value of resources but also provide sustainable energy and material solutions for various industries.
Biomass Pellet Plant
Fuel Pellet Plant
Cat Litter Production Line
organic Fertilizer Factory
RICHI MACHINERY
Video of RICHI Bamboo Pellet Machine
To provide customers with a more intuitive understanding of the bamboo pellet mill’s operation, we’ve provided a high-definition video demonstration. The video clearly illustrates the production process from raw bamboo to finished product. The equipment operates smoothly, the pelletizing process is efficient, and the resulting bamboo pellets are uniform in appearance and high in density, demonstrating the machine’s excellent performance and reliability. This intuitive demonstration allows you to quickly understand the machine’s performance in actual production, allowing you to make purchasing decisions with greater confidence.
The core operating principle of a bamboo pellet machine is to gradually compress and shape pre-treated bamboo chip powder under high temperature and high pressure, ultimately producing dense, regular, and energy-efficient cylindrical fuel pellets.
- First, the crushed bamboo chips are evenly fed into the conditioning system. During the conditioning process, steam or an appropriate amount of water is added to adjust the humidity of the bamboo chips. The high temperature softens some of the lignin, enhancing the bonding between the bamboo chips and creating ideal conditions for subsequent high-pressure extrusion.
- The material then enters the pelletizing chamber. During this process, rollers exert tremendous pressure, forcing the bamboo chips into the die holes. As the material continues to pass through the die holes, the bamboo chip fibers are gradually compressed under the high temperature and high pressure, forming dense pellets.
- Finally, the formed pellets are cut into specified lengths outside the die holes, ensuring uniform appearance and consistent size.

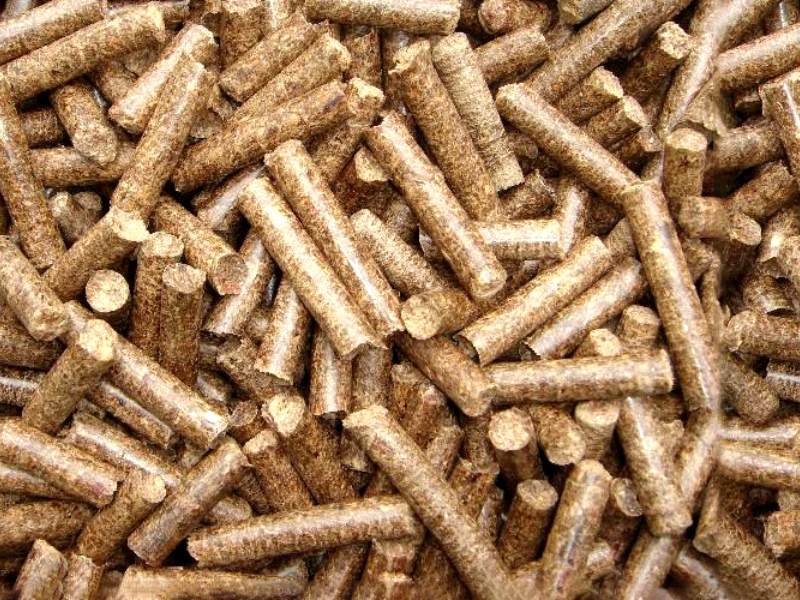

This complete working principle process ensures that the bamboo chips have advantages such as uniform size, high density and strong durability, which significantly improves the combustion efficiency.
RICHI MACHINERY
Specifications & Parameters of bamboo pellet machine for sale
To help customers choose the most suitable model, RICHI provides detailed technical specifications for these machines. These specifications cover key indicators such as output, power, die diameter, pellet size, and more, ensuring users can precisely match the equipment to their raw material characteristics and production needs.
| Model | MZLH320 | MZLH350 | MZLH420 | MZLH520 | MZLH678 | MZLH768 |
| Output (t/h) | 0.2-0.3 | 0.3-0.5 | 1.0-1.2 | 1.5-2.0 | 2.5-3.0 | 3.0-4.0 |
| Main motor power (kw) | 22 | 37 | 90 | 132 | 185 | 250 |
| Ring die diameter (mm) | 320 | 350 | 420 | 520 | 673 | 762 |
| Finished pellet diameter (mm) | 4-12 | |||||
(Note: RICHI Machinery’s products are always updated and improved. Therefore, if there is any difference between the pictures, feature descriptions and performance parameters of the actual model, please refer to the actual product.)
RICHI MACHINERY
Technical features & highlights of RICHI Bamboo Pellet Machine
RICHI Machinery bamboo pellet machine utilizes advanced engineering design concepts and reliable biomass pellets manufacturing process to ensure stable operation, high output, and high-quality pellets. It not only efficiently utilizes bamboo resources but also provides users with a sustainable, cost-effective, and environmentally friendly energy solution.
Flexible Capacity
We offer different models of equipment, covering a wide range of production capacities to meet the diverse needs of customers’ production lines of various sizes.
Advanced Pelletizing System

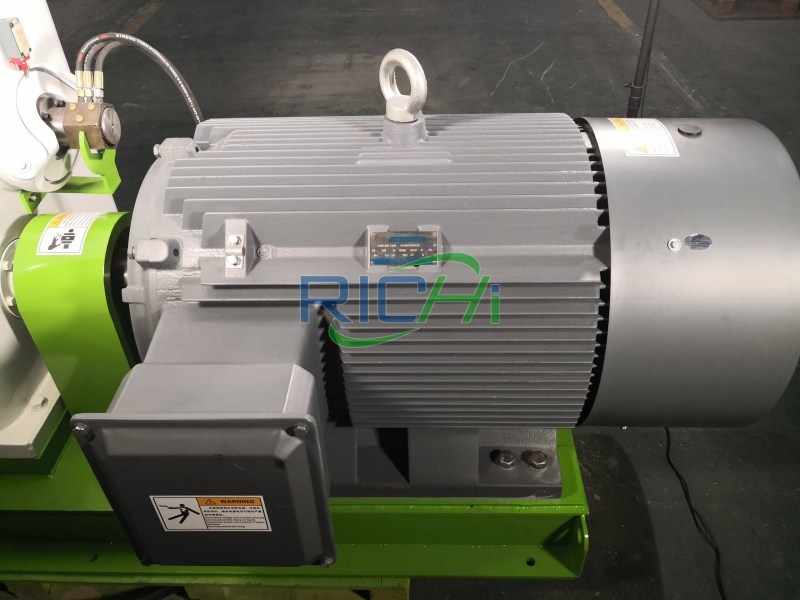

Our bamboo pellet mill is equipped with Siemens motors and SKF bearings, which ensure stable operation, high efficiency and durability. The advanced compression system ensures that the bamboo fiber is pressed into compact and durable pellets.
Energy-Saving Design
The optimized transmission and structural layout reduces energy consumption and improves overall production efficiency, making it very suitable for biomass pellet plants of various sizes.

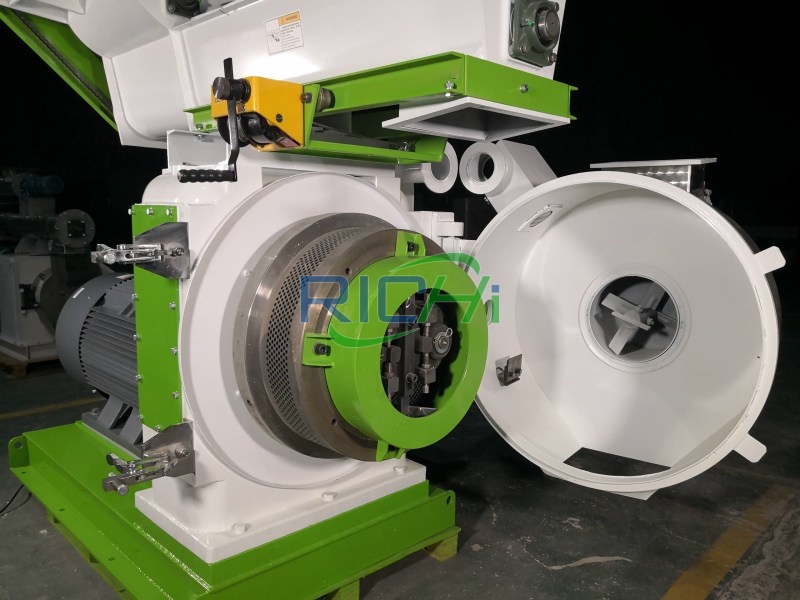

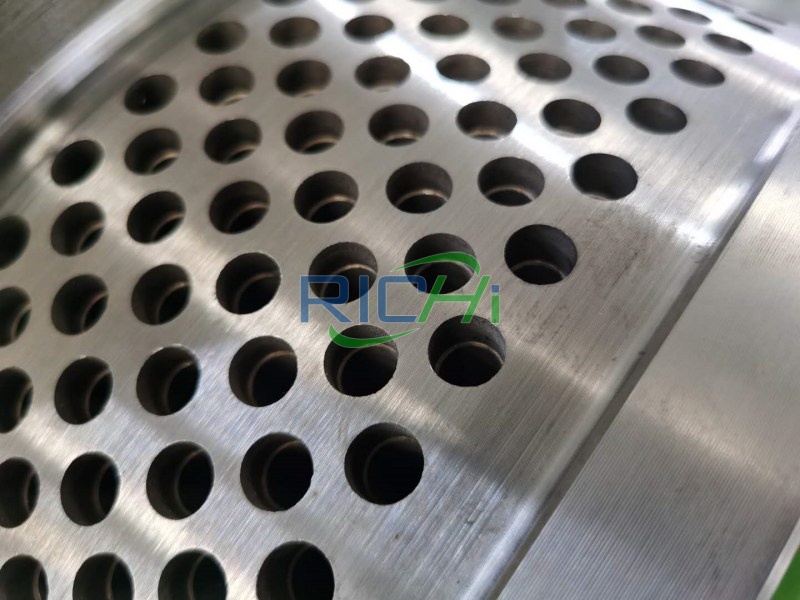

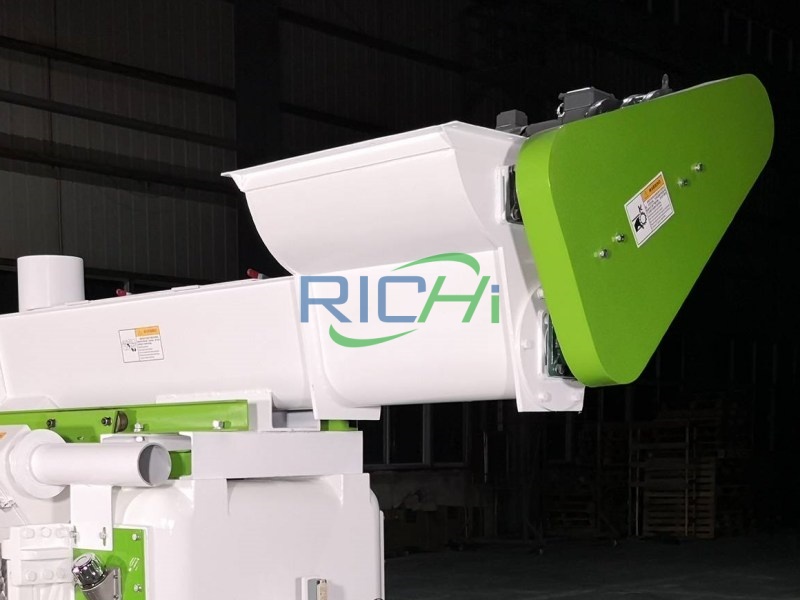

Efficient Ring Die & Roller System
The pelletizing chamber adopts precision-designed high-quality stainless steel ring die and pressure roller structure to ensure longer service life, uniform particle size, and stable performance under continuous operation.
Strong Raw Material Compatibility
Our bamboo pellet machine can process bamboo dust, bamboo chips, bamboo scraps and mixed biomass raw materials, suitable for a variety of application scenarios.
User-Friendly Operation & Maintenance
The equipment has a compact structure, easy replacement of wearing parts, and a simplified lubrication system, making operation and daily maintenance more time-saving and efficient.
global cases of RICHI bamboo pellet machine
With over 30 years experience, RICHI bamboo pellet machines and other pellet equipment products have been successfully installed and operated in over 140 countries and regions, spanning Asia, Africa, Europe, and South America. We provide clients with customized pelletizing solutions and pellet plant solutions, helping them transform abundant bamboo resources into clean, high-value biomass energy. These global successes not only demonstrate the durability and adaptability of RICHI equipment, but also fully demonstrate our commitment to providing reliable, sustainable, and efficient pelletizing technology to our customers worldwide.

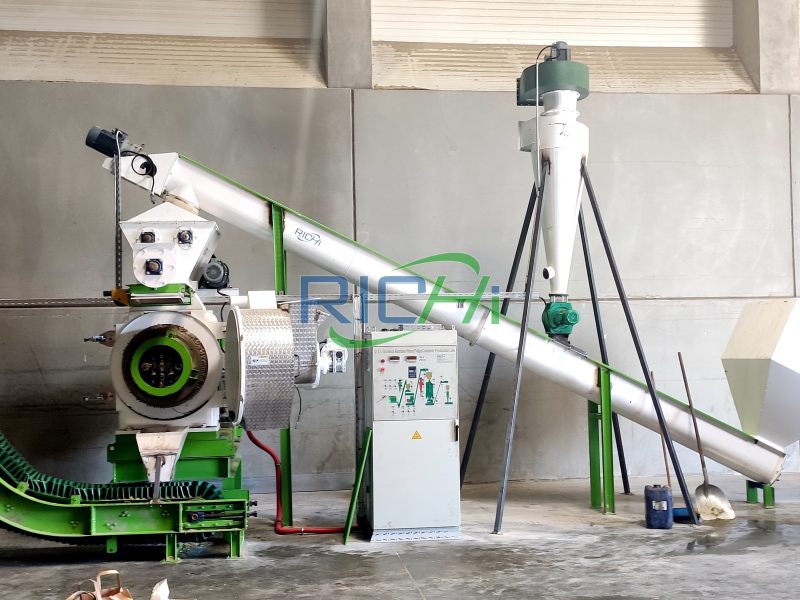

bamboo pellet machine for sale malaysia
- Project country: Malaysia
- Application project: 2.5T/H Bamboo Fuel pellet production line
- Project background: Malaysia boasts abundant bamboo and timber resources, but a significant amount of bamboo scraps and forestry byproducts have long been left unused or discarded. A client invested in a 2.5 ton/hour biomass wood pellet production line. The RICHI bamboo pellet machine played a key role in this project, transforming low-value bamboo and other wood waste into high-calorific fuel pellets, which are widely used in boiler combustion and exported to neighboring countries.
- Other equipment for the project: Crusher, Hammer mill, Dryer, Cooler, Screening device, Automatic packaging

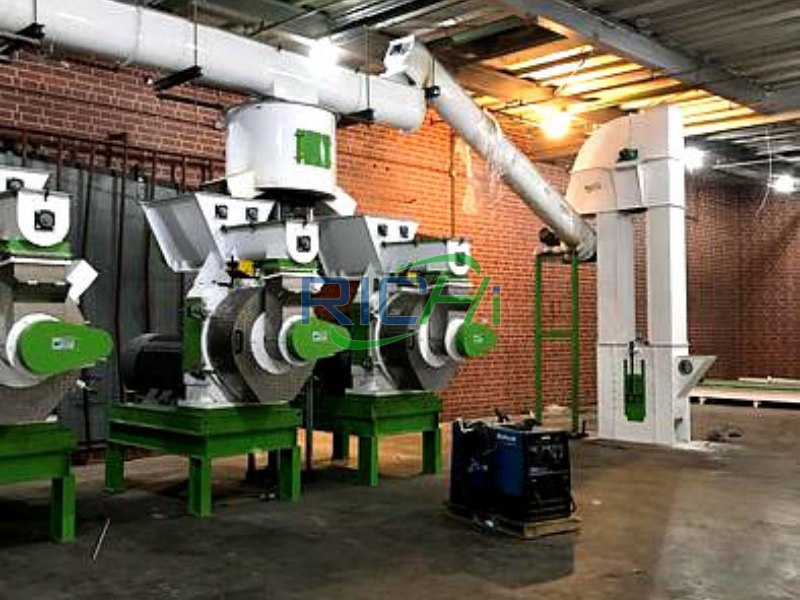

bamboo pellet machine for sale South Africa
- Project country: South Africa
- Application project: 3-4T/H Complete Bamboo pellet Production plant
- Project background: South Africa has a relatively concentrated bamboo forest. Due to the unstable local coal supply, the client sought to invest in biomass fuel, recycling local bamboo and agricultural byproducts. They built a 3-4 ton/hour bamboo fuel pellet production line. Using our pellet mill, the complete wood pellet plant produces environmentally friendly fuel pellets at a low cost and consistently. This investment not only reduced operating costs but also increased energy independence.
- Other equipment for the project: Crusher, Dryer, Machine, Cooler, Screening device, Automatic packaging

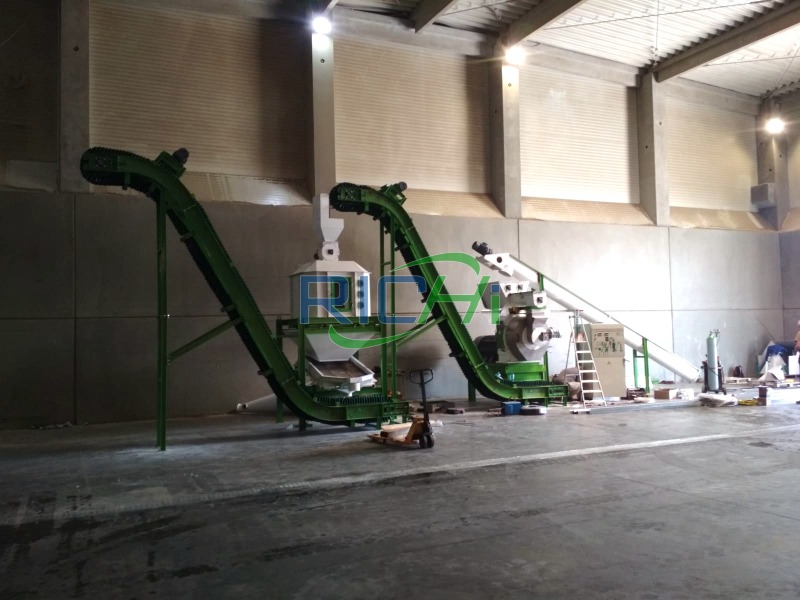

bamboo pellet machine for sale indonesia
- Project country: Indonesia
- Application project: 0.5T/H Cat litter production line
- Project background: Indonesia boasts abundant bamboo resources and a rapidly developing pet products market. With the increasing number of pet owners, demand for environmentally friendly cat litter is growing. To capitalize on this market opportunity, a client invested in a 0.5 ton/hour pellet line. Using the RICHI bamboo pellet mill, the bamboo powder is pressed into uniform 3–4mm pellets, offering excellent water absorption and deodorizing properties. This project not only meets local demand in Indonesia but also gives the company a leading position in the Southeast Asian green pet products market.
- Other equipment for the project: Wood Chipper, Wood chip hammer mill, Cooler, Screening device, Automatic packaging
bamboo pellet machine for sale Romania
- Project country: Romania
- Application project: 2.5-3T/H Organic fertilizer production line
- Project background: Romanian agriculture is rapidly transitioning towards sustainable and organic production. To efficiently utilize bamboo and local crop byproducts, a client invested in a 2.5–3 ton/hour bamboo pellet production line. The equipment ensured consistent pellet formation, producing nutrient-rich organic fertilizer pellets that effectively improve soil fertility and crop yields. This project has helped the cooperative strengthen its competitiveness in the European organic market.
- Other equipment for the project: Crusher, Belt dryer machine, Cooler, Automatic packaging

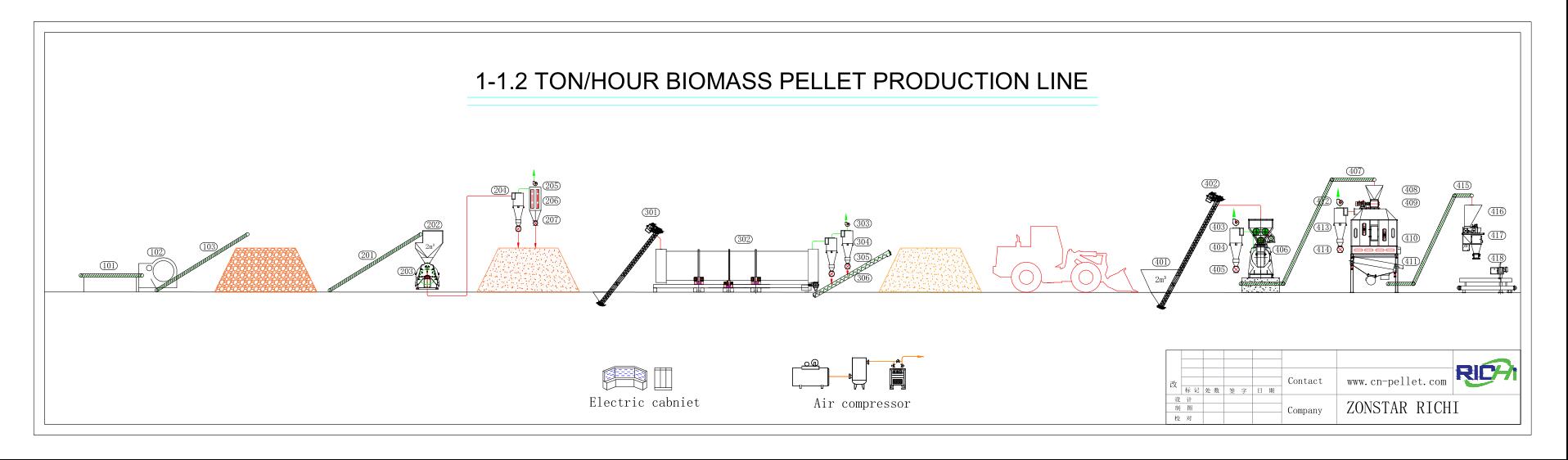

Application of Bamboo Pellet Machine in Production Line
— Richi Machinery —
The bamboo pellet machine is the core processing unit in the entire pellet production line. After pre-processing, including crushing, drying, and screening, the bamboo raw material is fed into the pelletizing chamber of the pelletizer. Here, under high temperature and pressure, the bamboo fibers are compressed into dense, uniform, and durable cylindrical pellets. This process not only significantly increases the energy density of the pellets but also makes them easier to store, transport, and use. Taking a 1–1.2 T/H biomass pellet production line as an example, the following illustrates the complete workflow of the system.
- Chipping: Larger bamboo stalks are first processed through a wood chipper, where they are cut into evenly sized chips. This process helps reduce the volume of the raw material, facilitating subsequent crushing.
- Crushing: The bamboo chips are then processed into fine bamboo powder using a hammer mill. The appropriate particle size ensures that the material meets pelletizing requirements, laying the foundation for subsequent pellet forming.
- Drying: This section uses a drum dryer to control the moisture content of bamboo powder to an appropriate range (12–18%). Proper drying effectively ensures that it can be formed into a stable shape after entering the pelletizer.
- Pelletizing: After drying, the bamboo powder enters the bamboo pellet machine, the core equipment of the entire process. Inside the pelletizing chamber, rollers press the material through the ring die under high pressure, forming dense cylindrical pellets. The pelletizing process is crucial, transforming loose bamboo powder into high-value-added solid fuel or industrial raw material.
- Cooling: Freshly extruded pellets are hot and soft, so they need to be cooled by a pellet cooler machine to harden the pellet surface and enhance overall durability, making them more suitable for storage and transportation.
- Packing: Finally, the cooled and screened pellets will be packed by an automatic packaging machine for subsequent transportation, storage and sales.
As a key component of the production line, the bamboo pellet machine directly determines the pellet quality, output level, and energy efficiency of the entire line. By adjusting the ring die and compression rollers, the equipment can flexibly meet the needs of pellets of varying diameters and specifications. Combined with auxiliary equipment such as crushers, dryers, coolers, and packaging machines, it ensures the smooth conversion of raw bamboo into high-value biomass fuel or industrial raw materials.
Frequently Asked Questions
To help our customers gain a clearer understanding of the RICHI Bamboo Pellet Machine, we have summarized a series of frequently asked questions collected from our global clients. By going through the following answers, you will find valuable guidance that may assist you in evaluating and selecting the most suitable pelletizing solution for your needs.
what is a bamboo pellet machine?
It is a specialized machine used to compress pre-treated bamboo dust or bamboo fiber into dense cylindrical pellets under high temperature and pressure. These pellets are widely used as a renewable biomass fuel and industrial feedstock. The machine utilizes the natural lignin in bamboo as a binder, eliminating the need for additional adhesives. The resulting pellets are uniform, durable, and high-quality, suitable for use in boilers, stoves, and other biomass energy systems.
What raw materials can the machine process?
This machine is designed specifically for bamboo raw materials, including bamboo chips and bamboo powder. Furthermore, provided the raw materials are properly pretreated to achieve the desired moisture content and pellet size, the machine can also process other biomass materials such as wood chips, rice husks, straw, sawdust, and other agricultural and forestry waste. This flexibility makes the machine suitable for a variety of applications, including biomass fuel production and industrial raw material preparation.
How to choose a right bamboo pellet machine?
When choosing the right bamboo pellet machine, consider the following key factors:
- Capacity: Select the machine based on your desired output. RICHI offers machines with capacities ranging from 0.3 tons/hour to 4.0 tons/hour, and we can also customize equipment to meet customer needs.
- Raw Material Type: Ensure the machine can handle the bamboo or other biomass you plan to process, and that the moisture content meets pelletizing requirements.
- After-Sales Service and Support: Choose a manufacturer that provides installation guidance, operator training, and spare parts.
By comprehensively evaluating the above factors, you can select the machine that best suits your production scale, raw material type, and budget.
Is RICHI able to provide turnkey project solutions?
Yes. RICHI can integrate bamboo pellet machines into production lines based on customer needs and provide comprehensive turnkey solutions, including customized design based on feedstock type and production capacity, equipment supply, on-site installation and commissioning, operator training, and technical support. With over 30 years of experience and successful projects in over 140 countries and regions, RICHI can ensure seamless integration, efficient operation, and long-term reliable performance.
