Pellet Cooler Machine
Pellet cooler machine plays a key role in keeping pellets strong, fresh, and safe, making it the ideal choice for different pellet production lines such as feed pellet production lines, wood pellet production lines, and biomass pellet production lines.
RICHI MACHINERY
What is a Pellet Cooler?
The pellet cooler machine is a key device in the cooling system of modern pellet production process, mainly used to reduce the temperature and moisture of pellets after pellet mill discharge.
Pellets are typically hot and have a high moisture content immediately after production. If packaged or stored directly at this point, problems such as cracking, mold, or clumping can occur.
Through the treatment of pellet mill cooler, the pellet appearance can be guaranteed to be consistent, without cracks, and smooth in appearance, which is convenient for sale, transportation and storage.
Working Principle of Pellet Cooler Machine
The counterflow pellet cooler adopts the advanced counter-current cooling principle, which is characterized by the direction of air flow being opposite to the direction of particle movement. Freshly pressed, hot pellets enter the cooler from the top, while cool air enters from the bottom of the cooling chamber, passing vertically through the entire pellet bed.
The countercurrent cooling method not only ensures uniform airflow distribution and sufficient air volume, but also minimizes the temperature difference between the cooling medium and the pellets. The cooled pellets typically reach a temperature only 3–5°C above room temperature, while their moisture content is steadily reduced, with a sedimentation rate of at least 3.8%.
The cool air first contacts the cooled pellets at the bottom, gradually heating them as it absorbs heat. The air then continues upward, contacting the still-hot pellets above. This “cold first, then hot” contact pattern effectively prevents cracks in the pellets caused by sudden cooling.
After cooling, the pellets are evenly discharged through a discharging device for subsequent screening, packaging, or storage. This process ensures that the pellets maintain high durability and minimize dusting, significantly improving storage stability.
Key Advantages of the pellet cooler machine
— Richi Machinery —
The horizontal pellet cooler’s purpose isn’t just to lower pellet temperature, it also ensures product quality, improves production efficiency, and prolongs pellet storage stability. This is why it’s a trusted solution for feed mills, aquafeed mills, wood pellet plants, and biomass energy producers worldwide.
It’s more than just a piece of equipment; it’s a crucial tool for protecting your investment and improving overall production efficiency. Let’s take a closer look at the core advantages of this machine.
Efficient Counter-Flow Cooling Principle
It utilizes a countercurrent cooling design, where cold air and pellets flow in opposite directions, resulting in more uniform heat exchange and effectively preventing pellet cracking caused by sudden cooling. Compared to traditional cooling methods, countercurrent cooling offers higher efficiency and more stable cooling results.
Easy Operation and Low Maintenance Cost
It has a user-friendly structural design, is equipped with an automatic discharge system and adjustable cooling parameters. It is easy to operate, requires minimal labor, and has relatively low maintenance costs, making it suitable for long-term, stable operation.
Excellent Cooling Performance with Minimal Temperature Difference
After processing in the pellet cooler, the final temperature of the pellets is typically only 3–5°C higher than room temperature. This small temperature difference not only ensures pellet quality but also extends storage life, making it ideal for use in feed, aquafeed, biomass, and wood pellet production lines.
High Yield and Low Powdering Rate
Due to the gentle cooling process, the pellet cooler machine significantly reduces pellet breakage and powdering rates, ensuring a higher yield, reducing waste and improving the economic benefits of the entire production line.
Reduced Moisture for Greater Stability
This counterflow pellet cooler can steadily reduce pellet moisture, achieving a sedimentation rate of no less than 3.8%. This reduction not only increases pellet hardness but also prevents mold and mildew, reducing the risk of deterioration during transportation and storage.
Wide Applications Across Industries
The pellet cooling has a wide range of applications and can be widely used in feed production, aquatic feed, wood pellets, biomass energy and other fields. It is an indispensable key equipment in modern pellet production plants.
RICHI MACHINERY
Specifications & Parameters of pellet cooler for sale
Technical parameters give you a clear idea of the machine’s capacity, efficiency, and suitability for your production needs. By comparing these specifications, you can better identify the right model for your feed mill, aquafeed plant, wood pellet line, or biomass project. RICHI Machinery offers two types of pellet cooler machine: SKLF Flap Countercurrent Cooler and SKLY Impeller Countercurrent Cooler.
| SKLF Flap Countercurrent Cooler | |||||||
| Model | SKLF11*11 | SKLF14*14 | SKLF17*17 | SKLF20*20 | SKLF24*24 | SKLF28*28 | SKLF32*32 |
| Output(T/H) | 1-3 | 3-5 | 6-8 | 8-13 | 13-20 | 25-30 | 30-40 |
| Power(KW) | 1.5 | 1.5 | 1.5 | 1.5 | 2.2 | 2.2 | 2.2 |
| Cooling time | 6-15 minutes | ||||||
| Material temperature after cooling | Room temperature+3~5℃ | ||||||
| SKLY Impeller countercurrent cooler | |||||||
| Model | SKLY11*11 | SKLY14*14 | SKLY17*17 | SKLY20*20 | SKLY24*24 | SKLY28*28 | SKLY32*32 |
| Output(T/H) | 1-3 | 3-5 | 6-8 | 8-13 | 13-20 | 25-30 | 30-40 |
| Power(KW) | 1.5 | 1.5 | 1.5 | 1.5 | 2.2 | 2.2 | 2.2 |
| Cooling time | 6-15 minutes | ||||||
| Material temperature after cooling | Room temperature+3~5℃ | ||||||
Whether you operate a small feed mill or a large industrial biomass plant, our machine can be customized to suit your actual situation. Choosing the right equipment means not only efficient cooling, but also consistent product quality, smooth production processes, and significantly reduced long-term operating costs. Feel free to contact our team for customized solutions, professional technical advice, and competitive quotes.
How Pellet Cooler Machine Ensures Efficiency and Quality in Pellet Production Line
In modern pellet production lines, every piece of pellet equipment plays a vital role in ensuring smooth production and product quality. Among them, the pellet cooling is one of the indispensable links. Taking this 5-7 ton/hour animal feed pellet production line as an example, each piece of equipment operates in a coordinated process, from raw material receiving, crushing, and mixing to pelleting, cooling, and packaging. The entire process is seamlessly linked. The horizontal pellet cooler ensures that newly produced feed pellets retain their nutritional content, durability, and long shelf life, playing a vital role in the production process.
- Receiving Section: After receiving, the raw materials undergo cleaning and preliminary processing before entering the crushing stage.
- Crushing Section: Hammer mills pulverize the raw materials into a fine powder to ensure optimal pelleting.
- Mixing Section: The various raw materials are evenly blended in a blender, and nutrient premixes may be added to ensure nutritional balance in each pellet.
- Pelleting Section: The feed granulator machine presses the mixed powder into dense, uniform pellets.
- Cooling Section: Freshly made pellets are hot and contain high amounts of moisture. Direct packaging can lead to mold and breakage. The feed pellet cooler uses countercurrent cooling to keep pellet temperature close to room temperature and reduce moisture to a safe level, thereby improving pellet hardness and durability and ensuring stability during storage and transportation.
- Packaging Section: The cooled pellets are screened to remove fines, then weighed and packaged for transportation and sale.
As shown in this production line, the pellet cooler machine is not only a supporting equipment, but also an important link in ensuring product quality and production efficiency. Through scientific cooling and stabilization, it effectively extends the shelf life of feed, significantly enhancing the feed mill’s competitiveness in the market.
Application Areas of pellet cooler machine

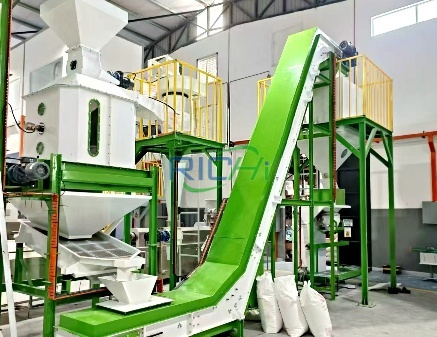

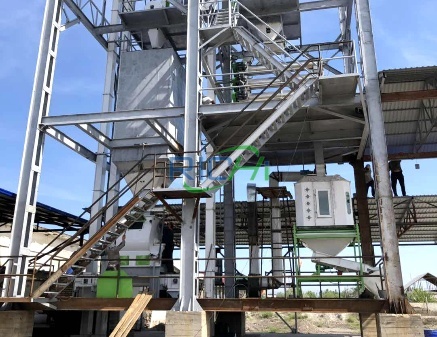

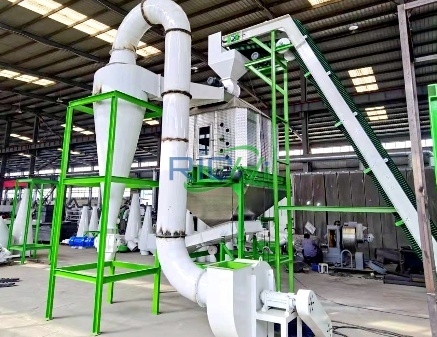

This machine is a highly versatile solution that is widely used in various pellet production lines. Whether producing animal feed, fish feed, biomass fuel, or wood pellets, a scientific cooling process is key to ensuring pellet quality, durability, safe storage, and smooth transportation.
No matter what pellet business you’re in, we can provide you with a customized equipment, complete with a comprehensive one-stop turnkey service. Choosing RICHI Machinery means you get more than just a piece of equipment; you get a trusted partner who can help you achieve efficient production, high-quality products, and long-term success.
Frequently Asked Questions
When choosing the right machine for your production line, it’s natural to have many questions. To help you better understand our equipment and make the best decision for your business, we’ve compiled some frequently asked questions along with detailed answers.
What is a pellet cooling machine and why is it necessary?
The equipment is a device specially used to reduce the temperature and moisture content of newly produced pellets. Pellets fresh from a pellet mill are typically hot, soft, and high in moisture. If packaged or stored directly at this stage, they are prone to cracking, deformation, and even mold.
It can gradually cool the pellets, making them harder, more storable, and easier to transport. In other words, without it, even the most advanced pellet mill cannot guarantee pellet stability and market competitiveness.
What are the main advantages of using this machine?
There are many benefits to using a pellet cooler machine in your production line. Firstly, cooling ensures a more stable hardness, reduced dusting, a longer shelf life, and a more aesthetically pleasing appearance for the finished pellets. Secondly, it improves production efficiency, ensures continuous production line operation, and avoids the risks of pellet blockage or deterioration.
More importantly, it can safeguard your investment and continuously guarantee product quality, thereby effectively improving customer satisfaction and market competitiveness.
Which industries can pellet coolers be applied in?
It has a wide range of applications. Whether it’s livestock feed production lines, aquaculture feed plants, wood pellet plants, or biomass pellet production, all fields involving pellet production rely on post-pellet cooling to effectively ensure finished product quality and facilitate subsequent storage and transportation.
Whether you focus on livestock and poultry feed, aquaculture feed, renewable energy or industrial use, it can provide professional guarantee and efficient support for your production line
Can the machine be customized based on production needs?
Absolutely. RICHI pellet cooler for sale can be customized according to different production needs. Whether your feedstock is corn, soybeans, or other feed ingredients, or biomass materials like straw, wood chips, or manure, we can recommend or design the most suitable model for your requirements, from small production lines to large-scale processing plants. This flexibility not only ensures efficient production line operation and a guaranteed return on investment, but also prepares you for future expansion.
