DOG FOOD MAKER MACHINE
The RICHI dog food maker machine is a specialized equipment designed for the production of granular dog food. It features high efficiency, durability, and low energy consumption. The particle formation rate can reach over 98%.
It can precisely produce dog food particles with balanced nutrition and uniform size according to different formulas, and also has excellent taste and palatability.
WORKING PRINCIPLE OF THE DOG FOOD MAKER MACHINE
The pre-treated raw materials are sent into the dog food maker machine. In the conditioner, the materials undergo maturation, gelatinization and sterilization, improving the taste and palatability. Then, they are extruded by the ring die and rollers to form uniform cylindrical particles.
- Dog food pellet ingredients: animal protein, carbohydrates, oils, fibers, vitamins, minerals, additives, etc.
- Single machine capacity: 0.5-12 tons/hour
- Pellet diameter: 2-12 mm
- Applicable products: Pet food manufacturing enterprises: produce kitten food, adult cat food and functional cat food; process high-protein fresh meat formulas and grain-free formulas; pet snacks; export-oriented pet food production lines, etc.
- Production line customization:Supported
- Popular product: Twin-screw extruder
The video on the right shows our pet food production line. If you are interested in using our dog food maker machine to produce high-quality dog food, please feel free to contact us at any time.
RAW MATERIALS FOR MAKING DOG FOOD
The nutritional requirements for dogs at different growth stages are different, and the selection of dog food formulas is of great significance.
Generally speaking, meat ingredients are the most important nutritional components in dog food. They mainly provide high-quality protein, fat, and amino acids, which can meet the growth and development needs as well as muscle maintenance requirements of dogs. Commonly used meat ingredients include chicken, beef, duck meat, mutton, fish, animal offal, etc.
Grain-based ingredients can provide energy for dogs and improve the structure and palatability of dog food. For example, corn, rice, wheat, oats, sweet potatoes, and potatoes. Some high-end formulas may use hypoallergenic grains or neutral formulas to meet the needs of special dog breeds.
Vegetables and fruits can provide natural vitamins, minerals and dietary fiber, which are beneficial for dogs’ digestion, absorption and immune health. Common raw materials include carrots, pumpkins, spinach, apples, blueberries, peas, etc.
Furthermore, in order to enhance the nutritional value and functionality of dog food, various nutritional fortification ingredients are usually added during production, such as fish oil, probiotics, glucosamine, vitamin complexes, mineral premixes, taurine, etc. These substances are beneficial for the joint health of dogs, promoting shiny fur, regulating functions, and boosting immunity.
DOG FOOD MAKER MACHINE SPECIFICATIONS
To meet the production needs of various scales of pet food, we offer multiple types of dog food production equipment. You can make a configuration selection based on your production capacity and process requirements. The equipment has excellent performance in terms of production capacity, power, size, and compatibility with raw materials. The specific specifications and parameters are as follows. We welcome you to contact us at any time for more detailed information.
| Model | SPHS75*2 | SPHS120*2 | SPHS120*2 | SPHS150*2 | SPHS185*2 |
| Main Motor Power(kw) | 55 | 90 | 110 | 200 | 355 |
| Screw Diameter(mm) | 75 | 120 | 120 | 150 | 185 |
| Feeder Power(kw) | 1.5 | 1.5 | 1.5 | 1.5 | 2.2 |
| Conditioner Power(kw) | 7.5 | 11 | 11 | 11 | 11 |
| Conditioner Specifications | DC400-244 | DC500-244 | DC500-244 | DC600-300 | DC600-300 |
| Differential Modulator Power(kw) | 11 | 11 | 11 | 15 | 15 |
| Differential Modulator Specifications | DC400*300-244 | DC500*400-300 | DC500*400-300 | DC600*500-300 | DC600*500-300 |
| Capacity(T/H) | 0.5-1.0 | 1.5-2.0 | 3.0-4.0 | 5.0-6.0 | 10-12 |

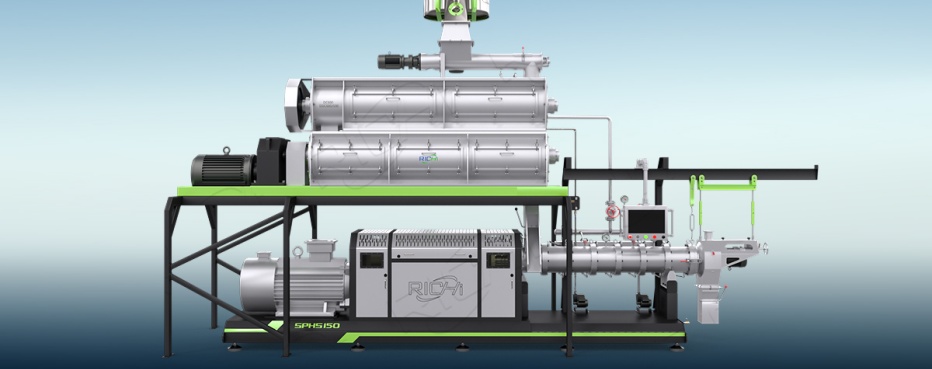

DETAILED STRYCTURE INTRODUCTION OF DOG FOOD MAKER MACHINE
This SPHS series dog food maker machine, which has obtained CE and ISO certifications, is a granulation equipment independently developed by RICHI Manufacture. It features high output, low noise, low energy consumption, long lifespan, simple operation and maintenance, and strong adaptability to different recipes.
Feeding System
The feeding system is controlled by a variable frequency feeder, which can adjust the feeding speed according to the recipe to ensure uniform and stable feeding, prevent material blockage and bridging, and is an important part for ensuring the continuous and stable operation of the equipment.
Conditioner
The conditioner mainly performs steam conditioning on the materials, enhancing the gelatinization degree and hydration degree of the starch, improving the particle expansion effect, enhancing the palatability of the product, and increasing the nutrient absorption rate.

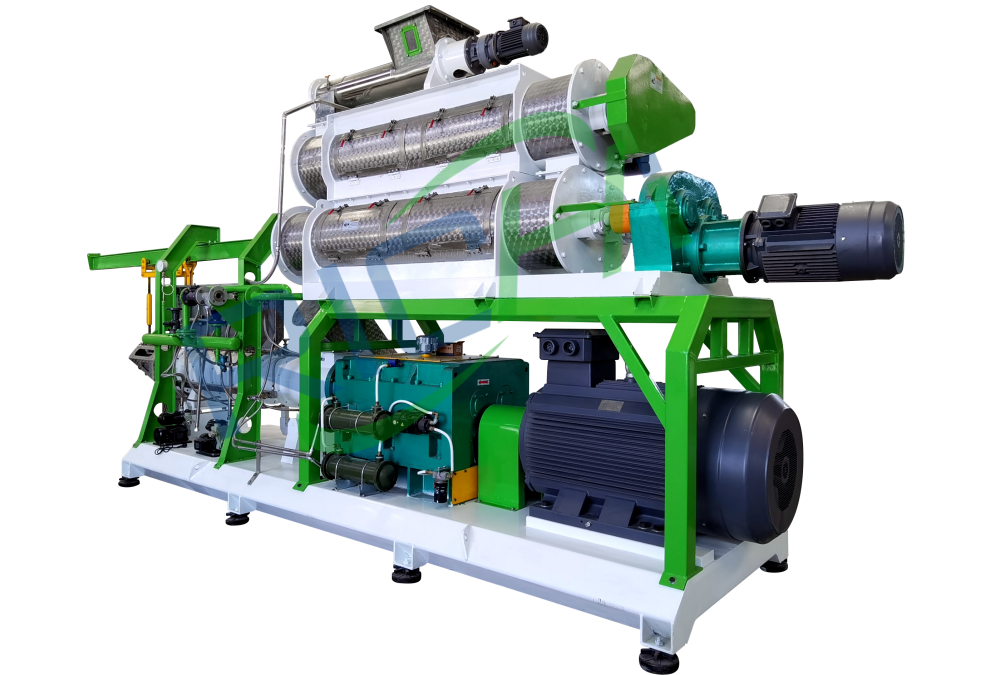

Twin Screw Extruder
The main unit of the twin screw extruder is the core component of the entire equipment. It achieves material maturation and expansion through high temperature, high pressure and shear action. We adopt a fully meshed twin screw structure, which ensures uniform shear force, stable expansion and easy maintenance.
Die and Cutting System
The die system determines the shape and size of the pet food granules, while the cutting system controls the length of the granules. The die system is easy to replace, supports multiple granule specifications, and allows adjustable cutting lengths, resulting in uniform and aesthetically pleasing finished granules.
PLC Intelligent Control System
The PLC control system is used for monitoring the overall operation and adjusting parameters, enabling automated production management. The operation is simple. The system functions include temperature control, speed adjustment, operation monitoring, fault alarm, and parameter storage, etc.
Power System
To ensure the long-term stable operation of the equipment, we use imported Siemens motors as the power system. Siemens motors can provide long-lasting, high-intensity and stable power.
ACTUAL PROJECT CASES
RICHI Manufacture is a professional manufacturer of complete granulation equipment. It can provide independent dog food maker machines, and can also customize the design of related complete production lines, and provide all the equipment needed at each stage of the production line. It offers you a one-stop, worry-free, and efficient investment solution.
Over the past 30 years, we have established 2,000 projects in 140 countries and regions around the world. Moreover, many of our clients have chosen to collaborate with us again in their subsequent expansion plans. This fully demonstrates the trust they have in us and the advantages of our product equipment. Below, we will briefly present some of the dog food maker machine-related projects for you. We hope this will help you make the best investment decision. If you have any further questions, please feel free to contact us at any time.
Vietnam
0.5 – 1T/H project
A small pet food startup enterprise in Hanoi, Vietnam, has established a small, cost-effective dog food production line.

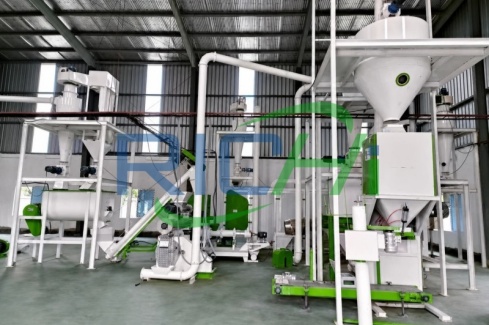

INDONESIA
1.5 – 2 tons/h project
This project is a pet store chain in Bali that specializes in producing budget-friendly dog food.

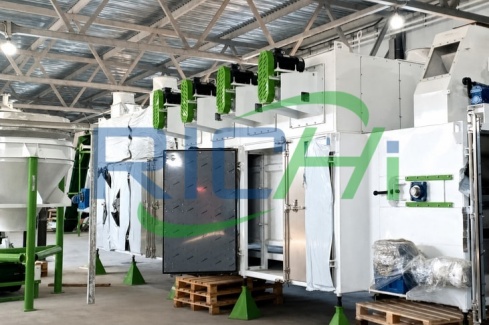

Russia
5-6t/h project
A large pet food factory in Moscow, producing various flavors of dog food and supplying to supermarkets across the country.
Brazil
3-4t/h project
The São Paulo medium-sized pet food factory, specializing in custom dog food. The production line is durable and has operated without major malfunctions for about 2 years.
Thailand
3-4t/h project
A medium-sized pet food company in Bangkok, produces pet food for export to neighboring countries. It focuses on using natural and healthy ingredients.
The United States
10-12t/h project
An international brand factory in California, specializing in the production of high-end dog food. It features fully automated and intelligent production line equipment.
INTRODUCTION TO THE DOG FOOD PRODUCTION LINE
The dog food production line is an automated equipment system that processes raw materials into high-quality pet food. From raw material crushing and mixing, to extrusion, drying, spraying of seasonings, and finally packaging, all these steps can be completed continuously. The entire production line operates stably and is easy to operate. It can flexibly adjust the process according to different pet food formulas to produce various shapes, flavors and nutritional ratios of dog food products. Whether it is a small processing factory or a large pet food enterprise, it can improve efficiency and ensure product quality through automated production, making dog food production more efficient and worry-free.
1
Raw Material Pretreatment:

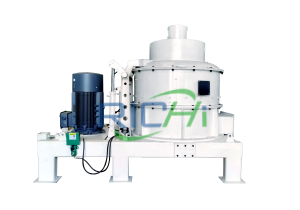

Pretreatment involves storage, impurity removal, crushing, and drying. Various materials are stored in corresponding silos. The impurity removal process screens out potential metals, stones, threads, and other debris from the raw materials to ensure food hygiene, quality, and equipment safety. Subsequently, the materials are crushed to the appropriate size and dried to optimal moisture content, ready for distribution in different formulations.
2
Precise Ingredient Distribution:
Based on the specific proportions required for different formulations, various raw materials are accurately distributed according to set ratios to ensure that each batch of pet food meets predetermined standards.
3
Mixing and Stirring:
After precise ingredient distribution, the raw materials are uniformly mixed in a mixer. This process directly affects product quality and the stability of nutritional components, forming the foundation for ensuring dog food quality.
4
Conditioning and Extrusion Molding:
The thoroughly mixed material is fed into the extruder. After being conditioned in the conditioner, the material undergoes maturation and gelatinization. Subsequently, the material enters the pelletizing chamber, where it is extruded through a ring die and pressure rollers into pellets of the desired size.
5

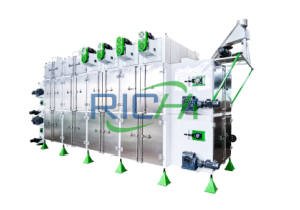

Drying and Sterilization:
Drying and sterilization are used to extend the shelf life of products and ensure food safety. It ensures that the finished product is not contaminated by bacteria, mold, or other microorganisms during storage and transportation, while also preventing food spoilage due to excessive moisture.
6
Surface Coating:

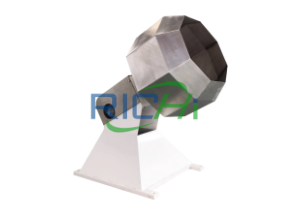

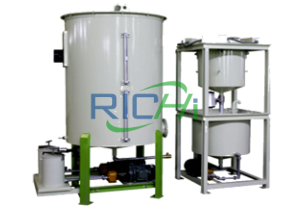

Surface coating is mainly used to improve food quality, taste, and appeal, enhance flavor and aroma, and supplement nutritional components. Examples include oils, vitamins, mineral solutions, flavorings, antioxidants, and palatability enhancers.
7
Cooling Packaging:
Cooling lowers the product’s temperature, ensuring that the product reaches room temperature or a suitable temperature during packaging. Excessive temperature can cause condensation, spoilage, or affect the product’s taste. The finished product is then packaged into appropriate sizes using an automatic packaging scale.
DISPLAY OF SOME EQUIPMENT IN A PET FOOD PROCESSING PLANT
With over 30 years of experience in manufacturing processes and equipment, RICHI offers a comprehensive portfolio of equipment covering the entire production process from start to finish. As China’s largest manufacturer of “full-line” equipment, we independently produce all the equipment needed for each stage of the production line.
OUR ADVANTAGES
Since its establishment in 1995, RICHI Manufacture has continuously reached new heights in the pelleting equipment manufacturing industry. We always adhere to technology-driven development, constantly break through our own limitations, and continuously invest in product research and development and production line construction. We always take customer needs as our guide and provide more accurate and reliable solutions.
Technical Advantages
Our experienced and highly capable technical team continuously optimizes equipment performance, exploring lower energy consumption, higher efficiency, and lower cost technologies to design more rational and efficient factory solutions for our clients.
Quality Advantages
The company has extremely strict quality control over its factory equipment, employs cutting-edge technology and highly wear-resistant materials in the production process, and is equipped with additional safety protection devices to ensure the equipment’s durability.
Price Advantages
With a manufacturing plant exceeding 60,000 square meters, our long-term technological innovation and large-scale production have enabled us to effectively control factory construction costs, helping our clients achieve the best returns on their investments.
Service Advantages
We offer comprehensive pre-sales and after-sales services, covering initial technical team communication and design, factory construction, customs clearance, installation and commissioning, providing you with a one-stop, worry-free experience.
OTHER PET FOOD MANUFACTURING MACHINES
RICHI Manufacturing specializes in the research and development and manufacturing of various pelleting machinery and equipment, and provides customized designs for various feed processing production lines and pelleting production lines.
FREQUENTLY ASKED QUESTIONS
If you have any questions, you can first take a look at these answers.
What is a dog food maker machine? How does it work?
+
A dog food maker machine is an automated equipment specifically designed for producing pet food. Through high-temperature, high-pressure, and extrusion processes, the machine can make dog food easier to digest, while improving the stability and palatability of the particles. The complete production process of dog food usually includes stages such as raw material grinding, raw material mixing, high-temperature expansion, shaping and cutting, drying, oil spraying and seasoning, cooling and packaging. We at RICHI provide customized design for complete production lines and offer all related equipment to create a one-stop dog food manufacturing solution for you.
What types of pet food can the dog food making machine produce?
+
Our equipment and complete production line have extremely strong adaptability to raw materials and are suitable for producing various formulas of dog food, such as puppy food, adult dog food, cat food, fish feed, pet snacks, high-protein pet food, grain-free pet food, etc. When using different formulas for production, only the corresponding molds need to be replaced or the formula adjusted, and different sizes and shapes of pet food can be produced, which is very suitable for multi-category production needs.
What are the differences between a dog food manufacturing machine and a dog food extrusion machine?
+
The core equipment required for making dog food is the extrusion machine. The dog food manufacturing machine usually refers to the extrusion machine. When making pet food such as dog food, the raw materials are fully cooked, hydrated and extruded through the extrusion machine, thereby producing high-quality pet food.
Can the size and shape of the dog food particles be adjusted?
+
Yes, it is possible. The size and shape of the dog food particles can be achieved by changing different-sized molds with different apertures. For example, small granular puppy food, medium granular adult dog food, and large granular pet food can be produced. At the same time, various shapes such as circles, bone shapes, triangles, heart shapes, and star shapes can also be made. This is very helpful for enhancing product differentiation and brand competitiveness.
What is the production capacity of the dog food manufacturing machine?
+
The single-machine production capacity of our equipment ranges from 0.5 to 12 T/H. The output of different models varies significantly. The single-machine production capacities mainly include 0.5-1 t/h, 1.5-2 t/h, 3-4 t/h, 5-6 t/h, and 10-12 t/h. If a larger production capacity is required, a complete production line can be established with multiple machines operating simultaneously. The specific design will depend on the actual requirements. For detailed information, please leave your contact information. We will arrange a technical consultant to further communicate with you.
Why is high-temperature extrusion necessary in dog food production?
+
High-temperature extrusion is a crucial step in pet food production. Its main functions include increasing the starch gelatinization degree, enhancing pet digestion and absorption, killing bacteria, improving the taste of dog food, and making the particles more fluffy and stable. After extrusion, the dog food will have better palatability and be more easily accepted by pets.
Can the dog food manufacturing machine produce grain-free dog food?
+
Yes, many high-end pet food brands are now producing grain-free dog food, high-protein dog food or natural formula dog food. Our equipment has a high degree of adaptability to various raw materials. Just by adjusting the formula ratio and equipment parameters, the production can be completed. For more details, you can have in-depth communication and exchange with our technical team to customize the exclusive equipment and production line for you.
How much factory space is needed for establishing a dog food production line?
+
The factory area mainly depends on the equipment output and the configuration of the production line. Generally speaking, a small production line requires an area of 50-100 square meters; a medium-sized production line needs 200-500 square meters; a large fully automatic factory requires more than 1000 square meters. Note that in addition to the equipment itself, storage areas for raw materials, finished product warehouses, packaging areas, and operation channels also need to be reserved. A reasonable layout of the workshop can improve production efficiency. However, the specific space required or the density of equipment settings need to be adjusted reasonably according to the actual situation. Regardless of the size of the factory space, we can design an appropriate production line.
Why does the material clogging phenomenon occur during the production process?
+
Material clogging is a common problem in pet food production. To address this widespread issue, we specially optimized and strengthened the relevant equipment of RICHI at the beginning of the manufacturing process. On our production line, each stage can be handled well, and there is basically no material clogging phenomenon.
Common causes of material blockage include inappropriate moisture content of raw materials, incorrect formula proportions, mold blockage, unstable temperature control, and insufficient raw material grinding. Regular equipment cleaning, proper formula and moisture control can effectively reduce the occurrence of blockage.
